Home / LED Driver Outdoor Constant Current / HVGC-150

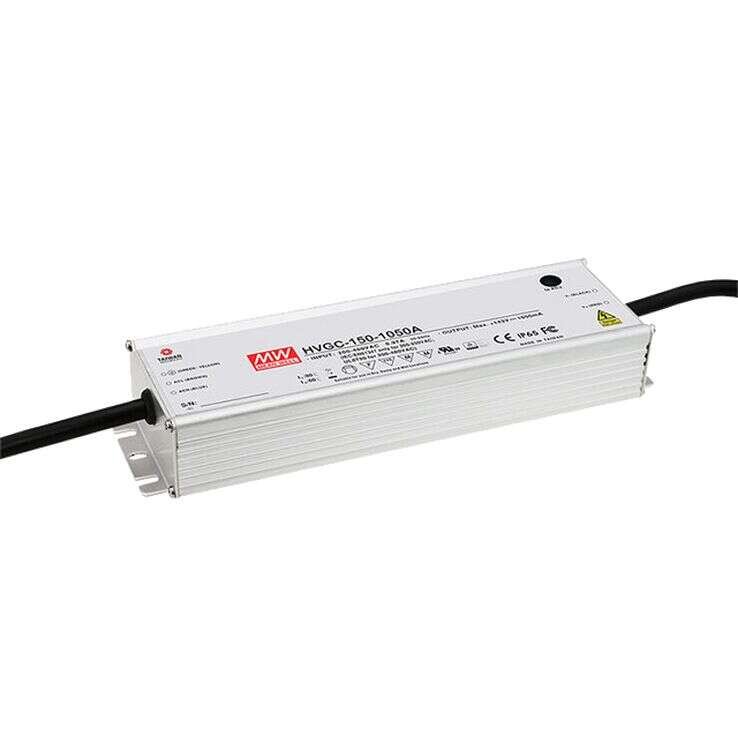

HVGC-150 Series
150W Constant Current Mode LED Driver
HVGC-150 Series Main Features:
Wide input range 180~528VAC
IP67 / IP65 rating for indoor or outdoor installations
Models:
Manufacturer:
Type:
Other features:
HVGC-150-350A / HVGC-150-500A
HVGC-150-700A / HVGC-150-1050A
HVGC-150-1400A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVGC-150-350A | HVGC-150-500A | HVGC-150-700A | HVGC-150-1050A | HVGC-150-1400A | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 149.8 | 150 | 150.5 | 150.15 | 149.8 | |||||||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | |||||||||||
| Output Current | 350mA | 500mA | 700mA | 1050mA | 1400mA | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| Dimensions | 245x68x38.8 | 245x68x38.8 | 245x68x38.8 | 245x68x38.8 | 245x68x38.8 | |||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020 | |||||||||||||||
