Home / LED Driver Outdoor Constant Current / HVGC-240

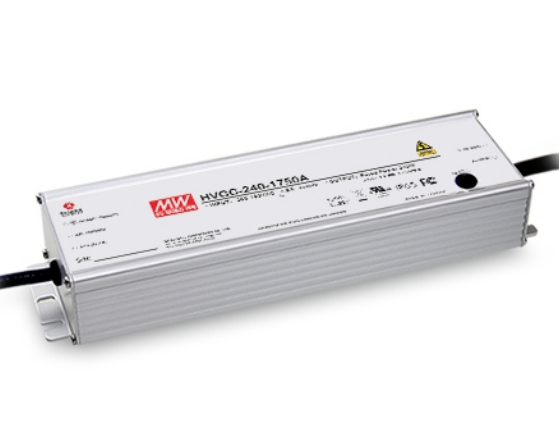

HVGC-240 Series
240W Constant Current Mode LED Driver
HVGC-240 Series Main Features:
Wide input range 180~528VAC
IP67 / IP65 rating for indoor or outdoor installations
Models:
Manufacturer:
Type:
Other features:
HVGC-240-700A / HVGC-240-1050A
HVGC-240-1400A / HVGC-240-1750A
HVGC-240-2100A / HVGC-240-2800A
HVGC-240-3500A
MEAN WELL
Outdoor Constant Current LED Driver
Metal housing with Class I design
Built-in active PFC function
Function options: output adjustable
via potentiometer; 3 in 1 dimming;Timer dimming
Typical lifetime>50000 hours
5 years warranty
Quote Request
| HVGC-240-700A | HVGC-240-1050A | HVGC-240-1400A | HVGC-240-1750A | HVGC-240-2100A | HVGC-240-2800A | HVGC-240-3500A | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 240 | 240 | 240 | 240 | 240 | 240 | 240.1 | |||||||||
| Input Voltage | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | 180~528VAC 254~747VDC | |||||||||
| Output Current | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| Dimensions | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | 254.2x68x38.8 | |||||||||||
| Working Temperature | -40-+90°C | |||||||||||||||
| Satety Standards | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004, IP65 or IP67 approved | |||||||||||||||
| EMC Standards | Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧80%), BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
