Home / LED Driver Indoor Constant Current / LCM-40UDA

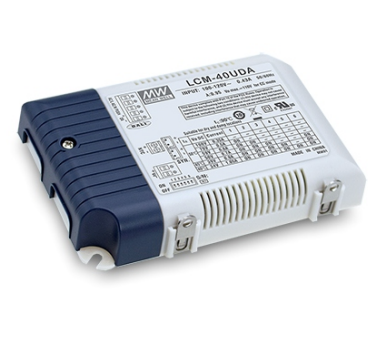

LCM-40UDA Series
35W Multiple-Stage Constant Current Mode LED Drive
LCM-40UDA Series Main Features:
Constant Current mode output with multiple levels selectable by dip switch
Plastic housing with class ll design
Models:
Manufacturer:
Type:
Other features:
LCM-40UDA
MEAN WELL
Indoor Constant Current LED Driver
Built-in active PFC function
Functions: DALI interface(logarithm or lin
-ear dimming curve selectable), push dim
-ming, synchronization up to 10 units
3 years warranty
Quote Request
| LCM-40UDA | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 35W | |||||||||||||||
| Input Voltage | 90-132VAC, 127-186VDC | |||||||||||||||
| Dimensions | 123.5x81.5x23 | |||||||||||||||
| Working Temperature | -30-+90°C | |||||||||||||||
| Satety Standards | UL8750 approved | |||||||||||||||
| EMC Standards | Compliance to FCC part 15 Subpart B | |||||||||||||||
