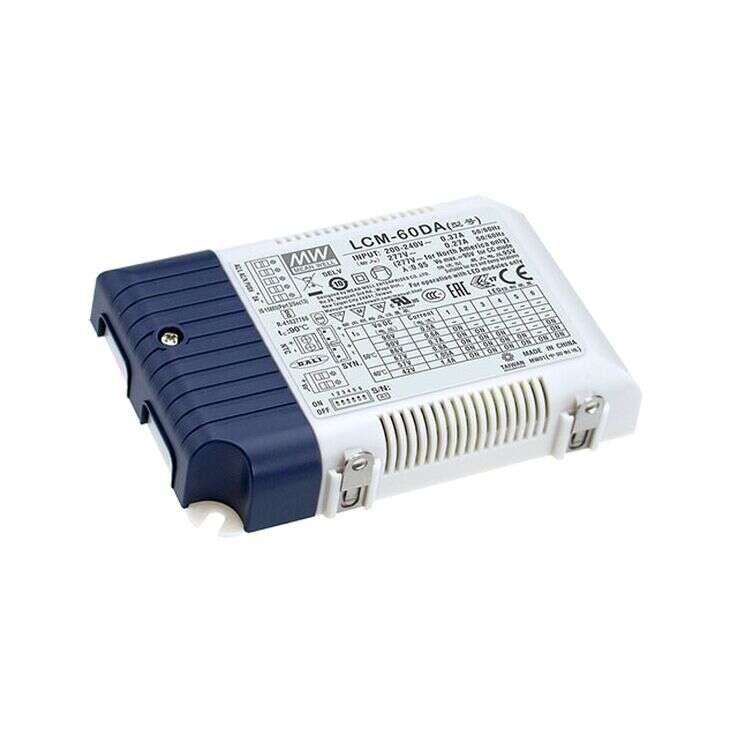

LCM-60DA Series
60W Multiple-Stage Constant Current Mode LED Driver
LCM-60DA Series Main Features:
Built-in DALI interface and push dimming function
Output current level selectable by DIP S.W.
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
LCM-60DA
MEAN WELL
Indoor Constant Current LED Driver
Protections: Short circuit / Over voltage
/ Over temperature
Temperature compensation function
by external NTC
No load power consumption <1.2W@
AC always on
Cooling by free air convection
Fully isolated plastic case
Class power unit, no FG
Built-in 12V/50mA auxiliary output
Suitable for LED lighting applications
3 years warranty
Quote Request
| LCM-60DA | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60W | |||||||||||||||
| Input Voltage | 180-295VAC 254-392VDC | |||||||||||||||
| Dimensions | 123.5x81.5x23 | |||||||||||||||
| Working Temperature | -30-+90°C | |||||||||||||||
| Satety Standards | UL8750(except for DA2-Type), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,GB19510.14, GB19510.1,BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)(for DA2-Type only) | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load≧40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020 | |||||||||||||||
