Home / LED Driver Indoor Constant Current / LPC-150

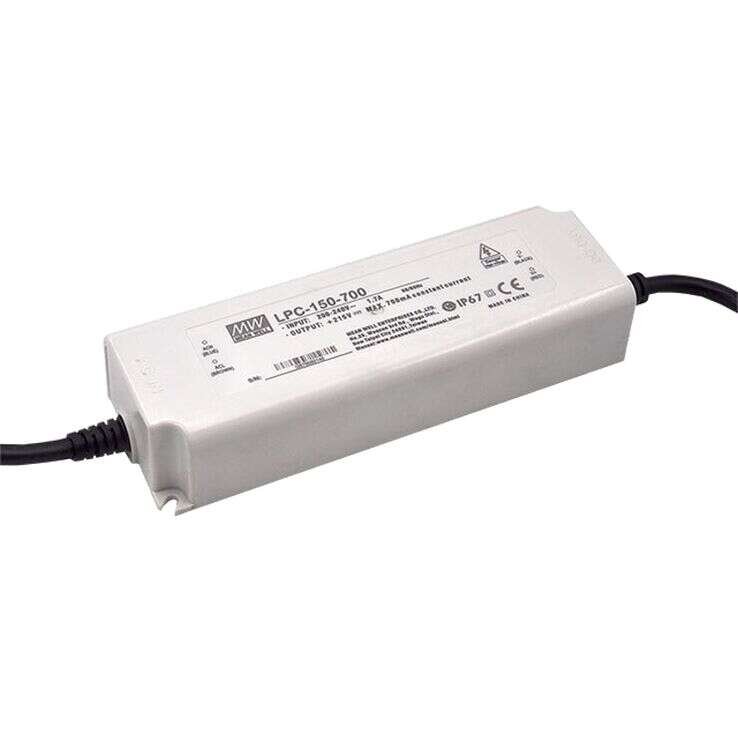

LPC-150 Series
150W Single Output LED Power Supply
LPC-150 Series Main Features:
Constant current design
High efficiency up to 90%
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
LPC-150-350 / LPC-150-500
LPC-150-700 / LPC-150-1050
LPC-150-1400 / LPC-150-1750
LPC-150-2100 / LPC-150-2450
LPC-150-2800 / LPC-150-3150
MEAN WELL
Indoor Constant Current LED Driver
Fully encapsulated with IP67 level
Fully isolated plastic case
Cooling by free air convection
Class II power unit, no FG
Suitable for LED lighting and moving
sign application
100% full load burn-in test
Low cost, high reliability
2 years warranty
Quote Request
| LPC-150-350 | LPC-150-500 | LPC-150-700 | LPC-150-1050 | LPC-150-1400 | LPC-150-1750 | LPC-150-2100 | LPC-150-2450 | LPC-150-2800 | LPC-150-3150 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150.5 | 150 | 150.5 | 151.2 | 151.2 | 150.5 | 151.2 | 151.9 | 151.2 | 151.2 | ||||||
| Input Voltage | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | 180~305VAC | ||||||
| Output Current | 350mA | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2450mA | 2800mA | 3150mA | ||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | ||||||
| DC output Adjustment | 215-430V | 150-300V | 107-215V | 72-144V | 54-108V | 43-86V | 36-72V | 31-62V | 27-54V | 24-48V | ||||||
| Dimensions | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | 191x63x37.5 | ||||||
| Working Temperature | -25-+50°C | |||||||||||||||
| Satety Standards | IP67 approved, refer to EN60950-1 | |||||||||||||||
| EMC Standards | Compliance to EN55022(CISPR22) Class B; EN61000-3-2 Class A (<80% load); EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||||||||||||
