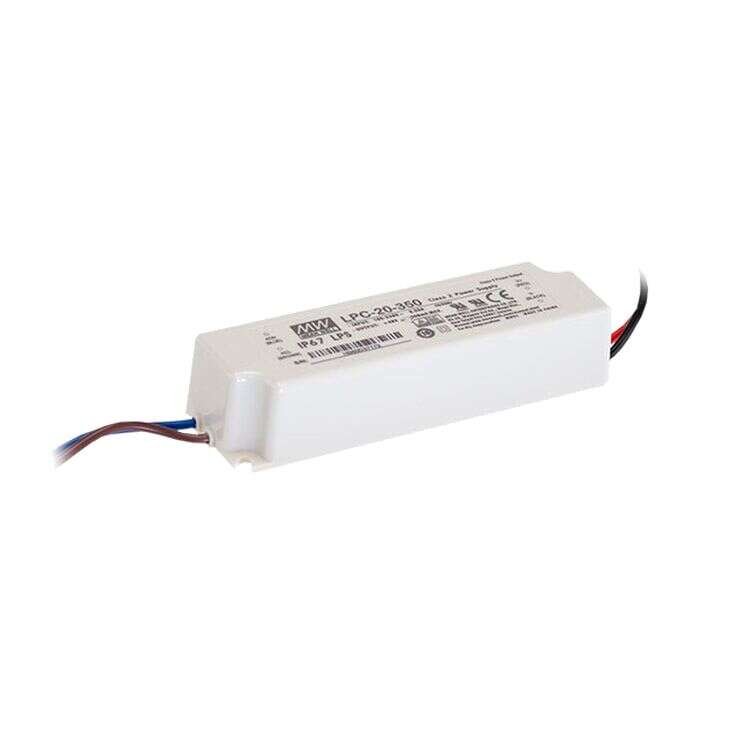

LPC-20 Series
20W Single Output Switching Power Supply
LPC-20 Series Main Features:
Constant Current
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LPC-20-350 / LPC-20-700
MEAN WELL
Indoor Constant Current LED Driver
Universal AC input/ Full range
Isolation class II, no F.G.
Cooling by free air convection
Class 2 power unit
Pass LPS
100% full load burn-in test
Low cost, high reliability
Withstand 300VAC surge input for 5 seconds
2 years warranty
Quote Request
| LPC-20-350 | LPC-20-700 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 20 | ||||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | ||||||||||||||
| Output Current | 350mA | 700mA | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Dimensions | 118x35x26 | 118x35x26 | ||||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13 | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 | |||||||||||||||
