Home / LED Driver Indoor Constant Current / LPC-60

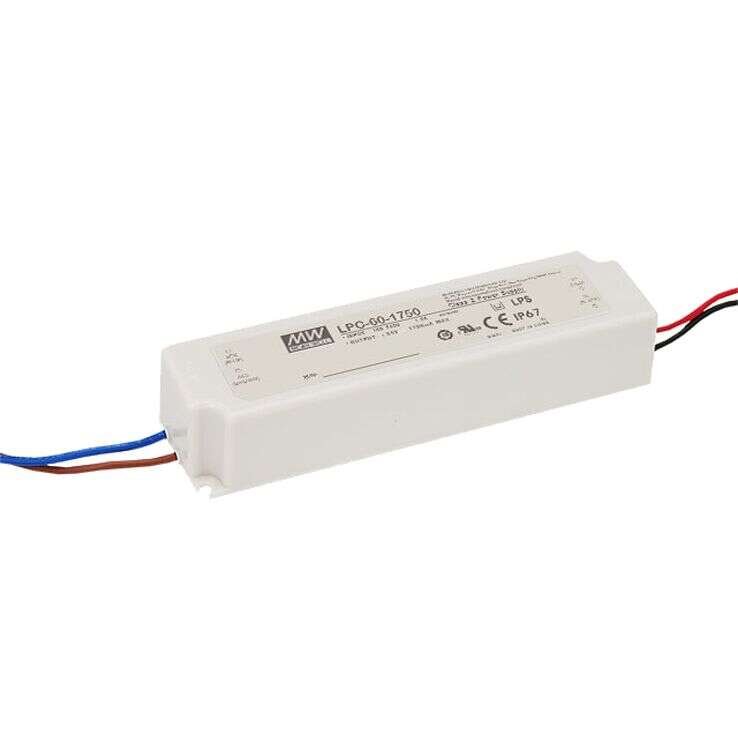

LPC-60 Series
60W Single Output Switching Power Supply
LPC-60 Series Main Features:
Constant Current
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LPC-60-1050 / LPC-60-1400
LPC-60-1750
MEAN WELL
Indoor Constant Current LED Driver
Universal AC input/ Full range
Isolation class II, no F.G.
Cooling by free air convection
Class 2 power unit
Pass LPS
Withstand 300VAC surge input for 5 seconds
100% full load burn-in test
Low cost, high reliability
2 years warranty
Quote Request
| LPC-60-1050 | LPC-60-1400 | LPC-60-1750 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 59 | 60 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 1050mA | 1400mA | 1750mA | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| Dimensions | 162.5x42.5x32 | 162.5x42.5x32 | 162.5x42.5x32 | |||||||||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13 | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 | |||||||||||||||
