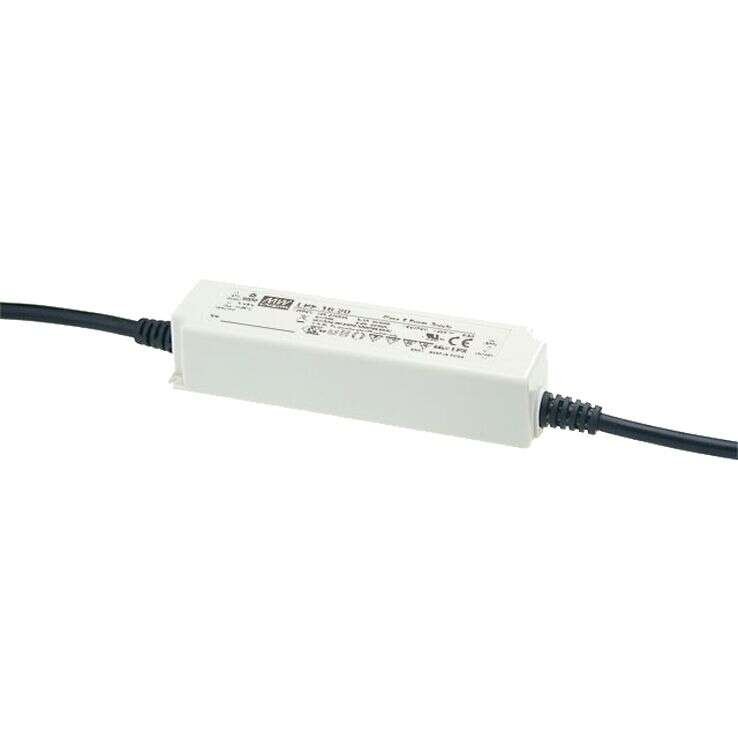

LPF-16D Series
16W Constant Voltage + Constant Current LED Driver
LPF-16D Series Main Features:
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
LPF-16D-12 / LPF-16D-15
LPF-16D-20 / LPF-16D-24
LPF-16D-30 / LPF-16D-36
LPF-16D-42 / LPF-16D-48
LPF-16D-54
MEAN WELL
Indoor with Dimming LED Driver
Universal AC input (up to 305VAC) / Full Range
Fully isolated plastic case with IP30 level
Cooling by free air convection
Class 2 power unit
Suitable for dry, damp, wet location
5 years warranty
Quote Request
| LPF-16D-12 | LPF-16D-15 | LPF-16D-20 | LPF-16D-24 | LPF-16D-30 | LPF-16D-36 | LPF-16D-42 | LPF-16D-48 | LPF-16D-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 6.6~12V | 8.25~15V | 11~20V | 13.2~24V | 16.5~30V | 19.8~36V | 23.1~42V | 26.4~48V | 29.7~54V | |||||||
| Dimensions | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | |||||||
| Working Temperature | -35-+70°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, EAC TP TC 004,GB19510.1,GB19510.14 approved, IP67(optional); Design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020 | |||||||||||||||
