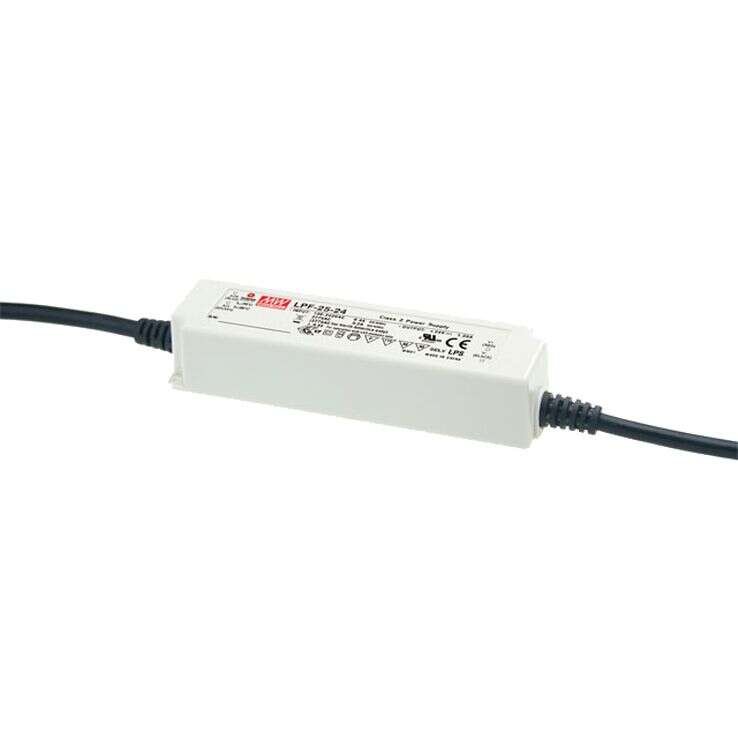

LPF-25 Series

25W Constant Voltage + Constant Current LED Driver

LPF-25

LPF-25 Series Main Features:

Built-in active PFC function

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Models:

Manufacturer:

Type:

Other features:

LPF-25-12 / LPF-25-15
LPF-25-20 / LPF-25-24
LPF-25-30 / LPF-25-36
LPF-25-42 / LPF-25-48
LPF-25-54

MEAN WELL

Indoor Constant Voltage LED Driver

Universal AC input (up to 305VAC) / Full Range

Fully isolated plastic case

Fully encapsulated with IP67 level

Class 2 power unit

Isolation class II, no F.G.

Suitable for dry, damp, wet location

5 years warranty

Quote Request

    LPF-25-12LPF-25-15LPF-25-20LPF-25-24LPF-25-30LPF-25-36LPF-25-42LPF-25-48LPF-25-54
    Wattage252525252525252525
    Input Voltage90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC
    Output Voltage121520243036424854
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment6.6~12V8.25~15V11~20V13.2~24V16.5~30V19.8~36V23.1~42V26.4~48V29.7~54V
    Dimensions148x40x32148x40x32148x40x32148x40x32148x40x32148x40x32148x40x32148x40x32148x40x32
    Working Temperature-35-+70°C
    Satety StandardsUL8750, CSA C22.2 No. 250.0-08; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, J61347-1,J61347-2-13,EAC TP TC 004,GB19510.1,GB19510.14,IP67 approved ;Design refer to UL60950-1
    EMC StandardsCompliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
