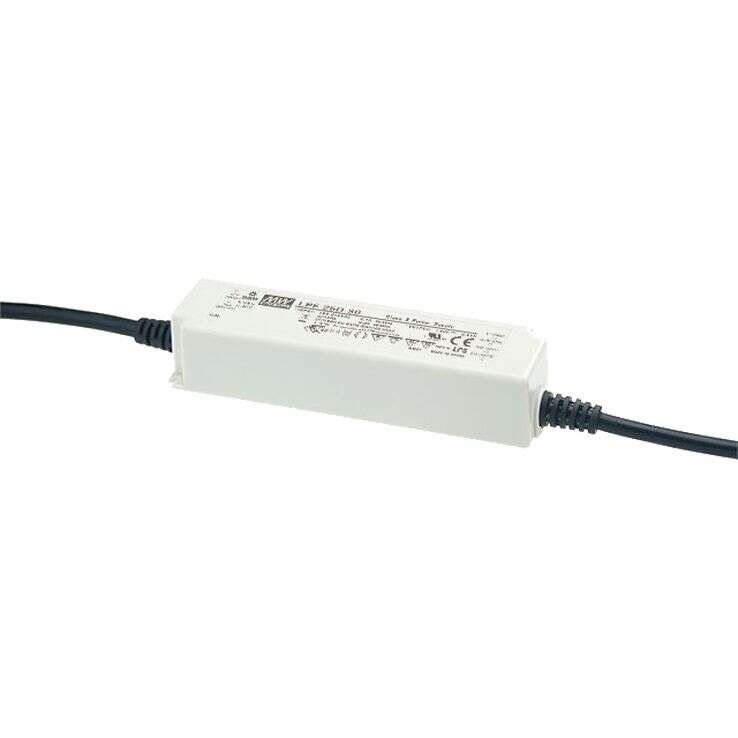

LPF-25D Series
25W Constant Current Mode LED Driver
LPF-25D Series Main Features:
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
LPF-25D-12 / LPF-25D-15
LPF-25D-20 / LPF-25D-24
LPF-25D-30 / LPF-25D-36
LPF-25D-42 / LPF-25D-48
LPF-25D-54
MEAN WELL
Indoor With Dimming LED Driver
Universal AC input (up to 305VAC) / Full Range
Fully isolated plastic case
Fully encapsulated with IP67 level
Cooling by free air convection
Built-in active PFC function
Class 2 power unit
Suitable for dry, damp, wet location
5 years warranty
Quote Request
| LPF-25D-12 | LPF-25D-15 | LPF-25D-20 | LPF-25D-24 | LPF-25D-30 | LPF-25D-36 | LPF-25D-42 | LPF-25D-48 | LPF-25D-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Current | 2.1A | 1.67A | 1.25A | 1.05A | 0.84A | 0.7A | 0.6A | 0.53A | 0.47A | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 6.6~12V | 8.25~15V | 11~20V | 13.2~24V | 16.5~30V | 19.8~36V | 23.1~42V | 26.4~48V | 29.7~54V | |||||||
| Dimensions | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | 148x40x32 | |||||||
| Working Temperature | -35-+70°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08,ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,GB19510.1,GB19510.14,IP67 approved ;Design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧55%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020 | |||||||||||||||
