Home / LED Driver Indoor Constant Voltage / LPF-40

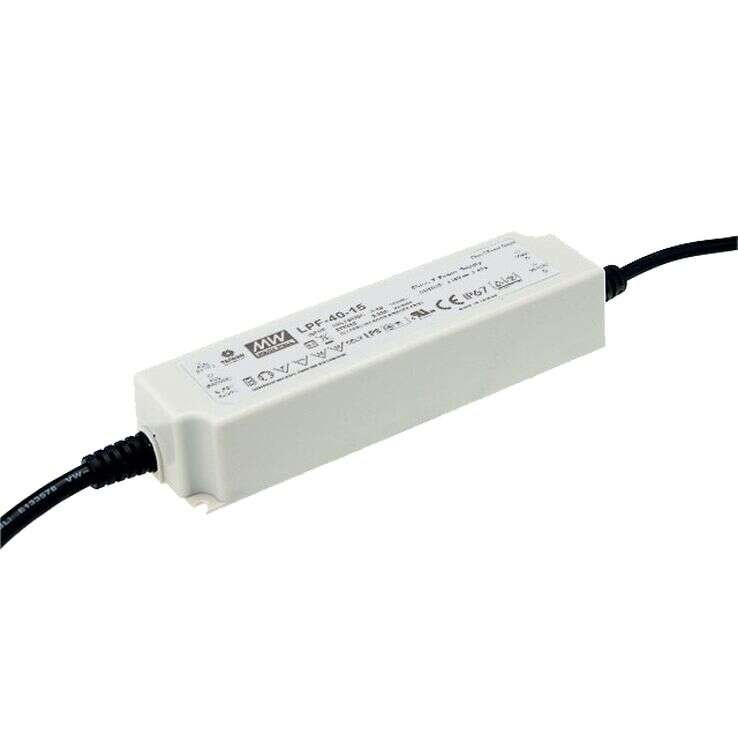

LPF-40 Series
16W Constant Voltage + Constant Current LED Driver
LPF-40 Series Main Features:
Built-in active PFC function
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
LPF-40-12 / LPF-40-15
LPF-40-20 / LPF-40-24
LPF-40-30 / LPF-40-36
LPF-40-42 / LPF-40-48
LPF-40-54
MEAN WELL
Indoor Constant Voltage LED Driver
Universal AC input (up to 305VAC) / Full Range
Fully isolated plastic case
Suitable for dry, damp, wet location
Class 2 power unit
Isolation class II, no F.G.
5 years warranty
Quote Request
| LPF-40-12 | LPF-40-15 | LPF-40-20 | LPF-40-24 | LPF-40-30 | LPF-40-36 | LPF-40-42 | LPF-40-48 | LPF-40-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 7.2~12V | 9~15V | 12~20V | 14.4~24V | 18~30V | 21.6~36V | 25.2~42V | 28.8~48V | 32.4~54V | |||||||
| Dimensions | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | 162x43.5x32 | |||||||
| Working Temperature | -40-+70°C | |||||||||||||||
| Satety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 | |||||||||||||||
| EMC Standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024 | |||||||||||||||
