Home / LED Driver Indoor with Dimming / LPF-60D

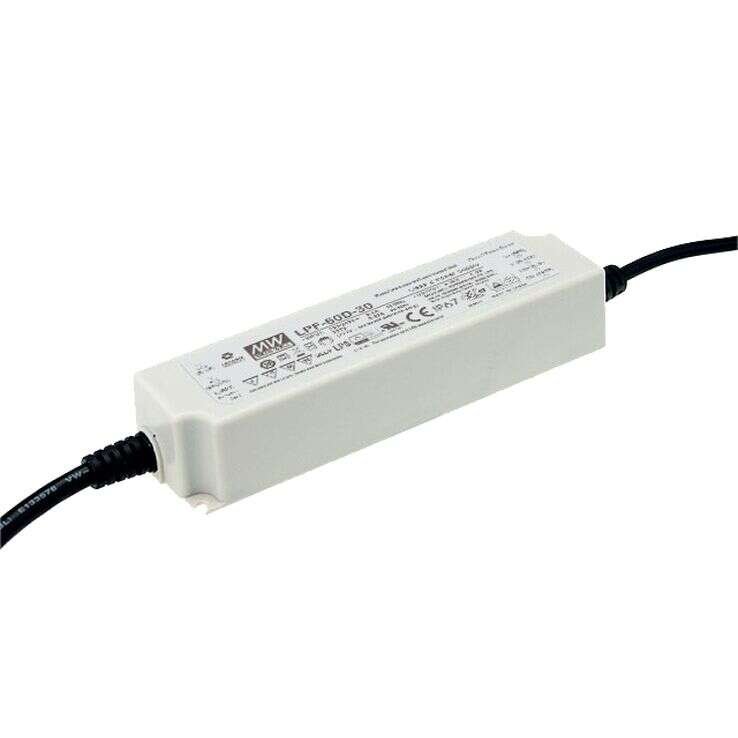

LPF-60D Series
60W Constant Current Mode LED Driver
LPF-60D Series Main Features:
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
LPF-40D-12 / LPF-40D-15
LPF-40D-20 / LPF-40D-24
LPF-40D-30 / LPF-40D-36
LPF-40D-42 / LPF-40D-48
LPF-40D-54
MEAN WELL
Indoor with Dimming LED Driver
Universal AC input (up to 305VAC) / Full Range
Fully encapsulated with IP67 level
Built-in active PFC function
Fully isolated plastic case
Isolation class II, no F.G.
Class 2 power unit
Suitable for dry, damp, wet location
5 years warranty
Quote Request
| LPF-60D-12 | LPF-60D-15 | LPF-60D-20 | LPF-60D-24 | LPF-60D-30 | LPF-60D-36 | LPF-60D-42 | LPF-60D-48 | LPF-60D-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 7.2~12V | 9~15V | 12~20V | 14.4~24V | 18~30V | 21.6~36V | 25.2~42V | 28.8~48V | 32.4~54V | |||||||
| Dimensions | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | 162.5x43x32 | |||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, IP67, GB19510.1,GB19510.14 approved ; design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1,EAC TP TC 020 | |||||||||||||||
