Home / LED Driver Indoor Constant Current / LPHC-18

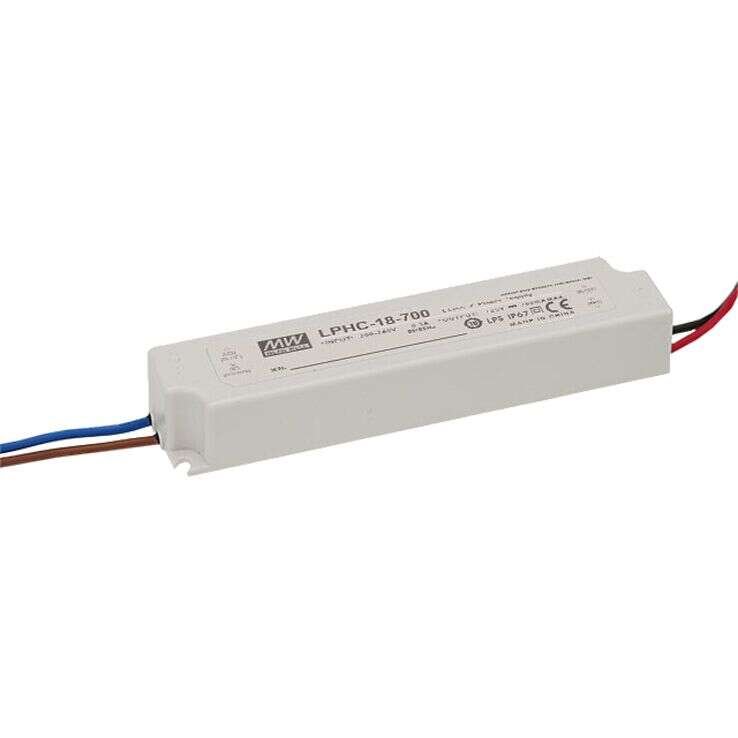

LPHC-18 Series
18W Single Output Switching Power Supply
LPHC-18 Series Main Features:
Constant Current
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
LPHC-18-350 / LPHC-18-700
MEAN WELL
Indoor Constant Current LED Driver
180~264VAC
Isolation class II, no F.G.
Cooling by free air convection
Class 2 power unit
Pass LPS
100% full load burn-in test
Low cost, high reliability
2 years warranty
Quote Request
| LPHC-18-350 | LPHC-18-700 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 18 | 18 | ||||||||||||||
| Input Voltage | 180~264VAC | 180~264VAC | ||||||||||||||
| Output Current | 350mA | 700mA | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| DC output Adjustment | 6-48V | 6-25V | ||||||||||||||
| Dimensions | 140x30x20 | 140x30x20 | ||||||||||||||
| Working Temperature | -10-+60°C | |||||||||||||||
| Satety Standards | Design refer to UL1310, EN60950-1, EN61347-2-13 | |||||||||||||||
| EMC Standards | EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
