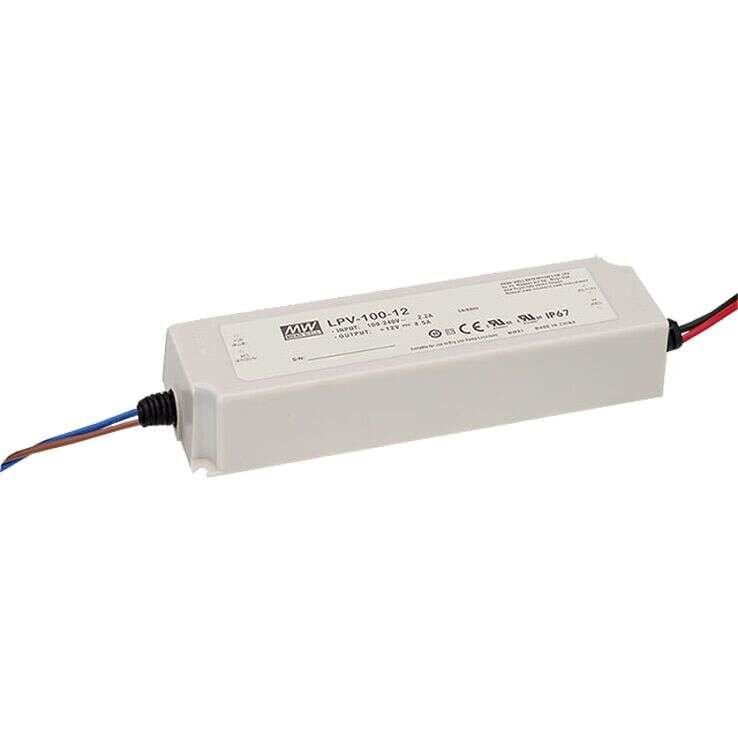

LPV-100 Series
100W Single Output Switching Power Supply
LPV-100 Series Main Features:
Constant Current
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LPV-100-5 / LPV-100-12
LPV-100-15 / LPV-100-24
LPV-100-36 / LPV-100-48
MEAN WELL
Indoor Constant Voltage LED Driver
Universal AC input / Full Range
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
2 years warranty
Quote Request
| LPV-100-5 | LPV-100-12 | LPV-100-15 | LPV-100-24 | LPV-100-36 | LPV-100-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||
| Output Current | 12A | 8.5A | 6.7A | 4.2A | 2.8A | 2.1A | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | 36V | 48V | ||||||||||
| Dimensions | 190x52x37 | 190x52x37 | 190x52x37 | 190x52x37 | 190x52x37 | 190x52x37 | ||||||||||
| Working Temperature | -25-+70°C | |||||||||||||||
| Satety Standards | UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(Note12), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(≤80% load), BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
