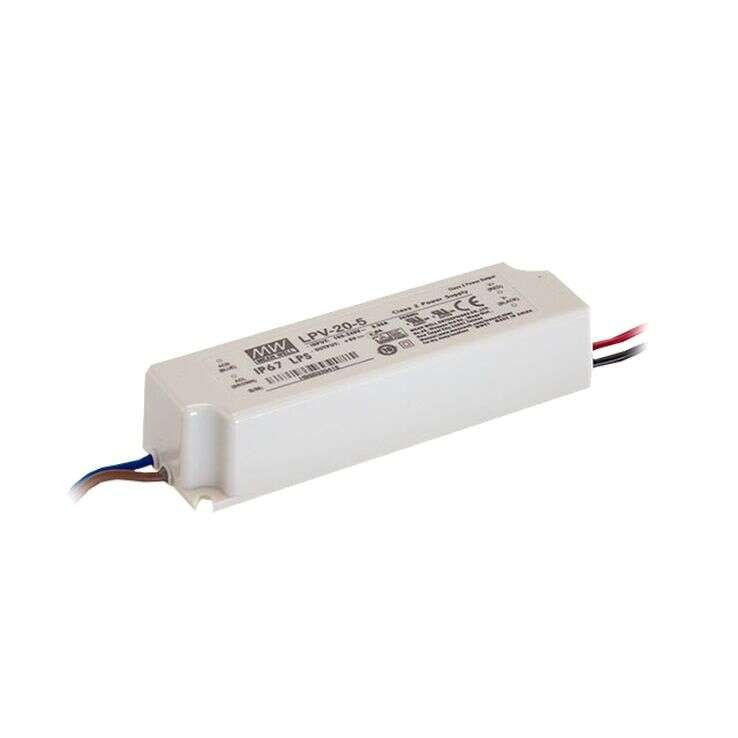

LPV-20 Series
20W Single Output Switching Power Supply
LPV-20 Series Main Features:
Constant Current
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LPV-20-5 / LPV-20-12
LPV-20-15 / LPV-20-24
MEAN WELL
Indoor Constant Voltage LED Driver
Universal AC input / Full Range
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Class 2 power unit
Pass LPS
100% full load burn-in test
Low cost, high reliability
2 years warranty
Quote Request
| LPV-20-5 | LPV-20-12 | LPV-20-15 | LPV-20-24 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 20 | 20 | 20 | ||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||
| Output Current | 3A | 1.67A | 1.33A | 0.84A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | ||||||||||||
| Dimensions | 118x35x26 | 118x35x26 | 118x35x26 | 118x35x26 | ||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,IEC/BS EN/EN 62368-1, IS 15885(Part2/Sec13)(NOTE 12), EAC TP TC 004,IP67 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3,EAC TP TC 020 | |||||||||||||||
