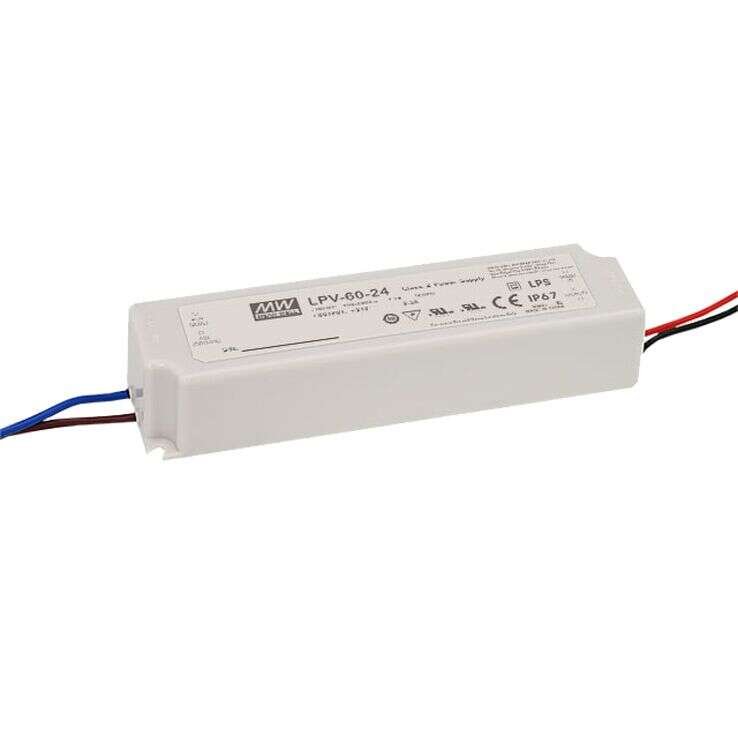

LPV-60 Series
60W Single Output Switching Power Supply
LPV-60 Series Main Features:
Constant Current
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
LPV-60-5 / LPV-60-12
LPV-60-15 / LPV-60-24
LPV-60-36 / LPV-60-48
MEAN WELL
Indoor Constant Voltage LED Driver
Universal AC input / Full Range
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Class 2 power unit
Pass LPS
100% full load burn-in test
Low cost, high reliability
2 years warranty
Quote Request
| LPV-60-5 | LPV-60-12 | LPV-60-15 | LPV-60-24 | LPV-60-36 | LPV-60-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | ||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||
| Output Current | 8A | 5A | 4A | 2.5A | 1.67A | 1.25A | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | 36V | 48V | ||||||||||
| Dimensions | 162.5x42.5x32 | 162.5x42.5x32 | 162.5x42.5x32 | 162.5x42.5x32 | 162.5x42.5x32 | 162.5x42.5x32 | ||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), BIS IS15885(Note 12), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
