Home / LED Driver Indoor Constant Current / NHDD-40

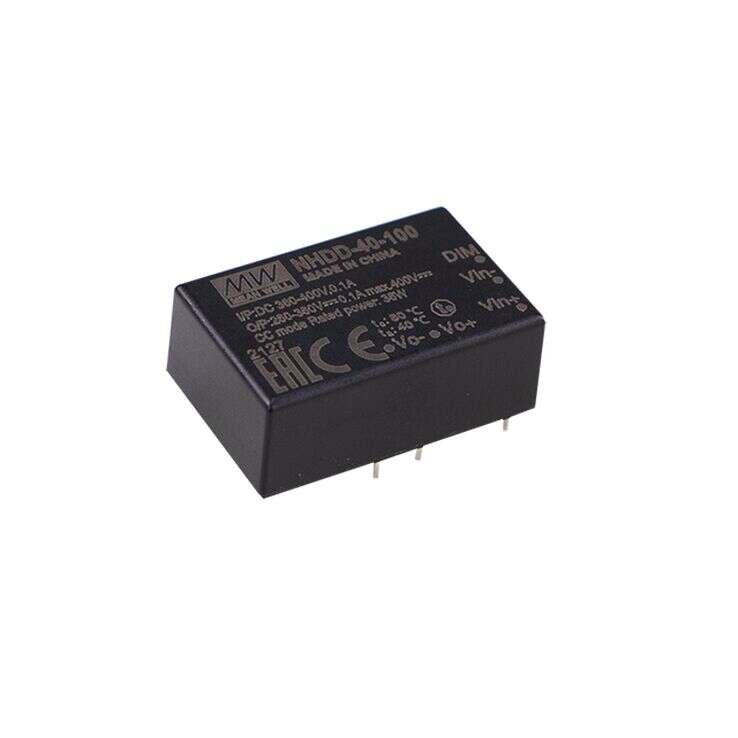

NHDD-40 Series
DC-DC Constant Current Driver With DC 380V Input
NHDD-40 Series Main Features:
NHDD-40 series is a DC/DC LED driver. It operates from 360~420VDC and offers constant current output
Models:
Manufacturer:
Type:
Other features:
NHDD-40-100
MEAN WELL
Indoor Constant Current LED Driver
Constant current mode output
For DC 380V Bus lighting application
Driver on board (DOB) solution available
Plastic housing and fully encapsulated
Built-in PWM and Remote ON/OFF control
Protections: short circuit/over temperature
5 years warranty
Quote Request
| NHDD-40-100 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 35 | |||||||||||||||
| Input Voltage | 360~420VDC | |||||||||||||||
| Output Voltage | 350V | |||||||||||||||
| Output Voltage Options | Single | |||||||||||||||
| Dimensions | 32.1x20.5x12.5 | |||||||||||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | LVD BS EN/EN61347 and EAC TP TC004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, EAC TP TC 020 | |||||||||||||||
