Home / AC-DC Charger / NPB-1200

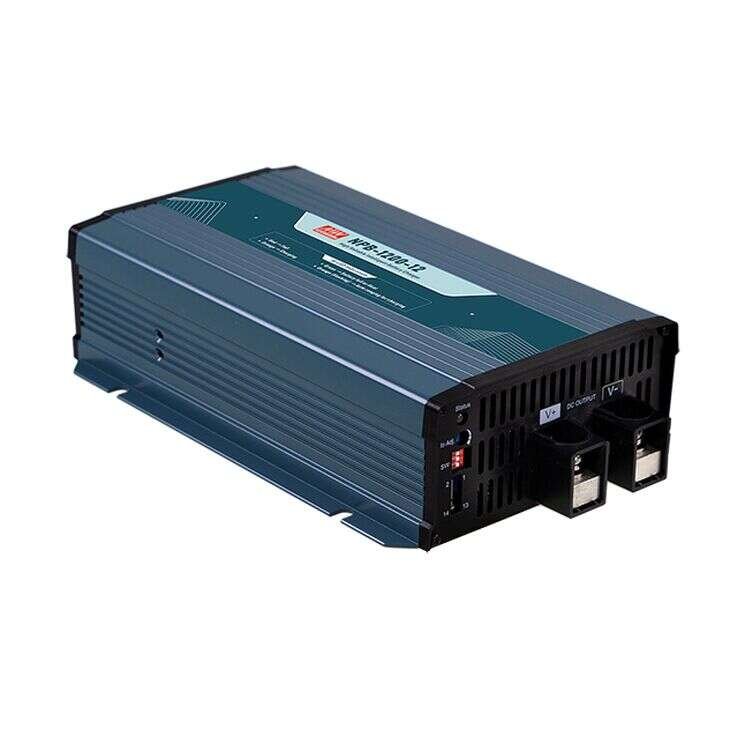

NPB-1200 Series
Chargers 1176–1209.6W
NPB-1200 Series Main Features:
NPB-1200 is a miniaturized, versatile, and ultra-wide voltage intelligent charge
Models:
Manufacturer:
Type:
Other features:
NPB-1200-12 / NPB-1200-24
NPB-1200-48
MEAN WELL
Charger
90~264Vac universal AC input, built-in PFC
Charger for compatible with lead-acid and
li-ion batteries
Fanless design
2 or 3 stage selectable by DIP S.W
No load power consumption <0.4W(AC
S.W off)
125% peak load capability
Front panel LED indicator for charging status
3 years warranty
Quote Request
| NPB-1200-12 | NPB-1200-24 | NPB-1200-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1176 | 1209.6 | 1209.6 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 70A | 36A | 18A | |||||||||||||
| DC Output Adjustment | 10.5~21V | 21~42V | 42~80V | |||||||||||||
| Dimensions | 250x158x67 | 250x158x67 | 250x158x67 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
