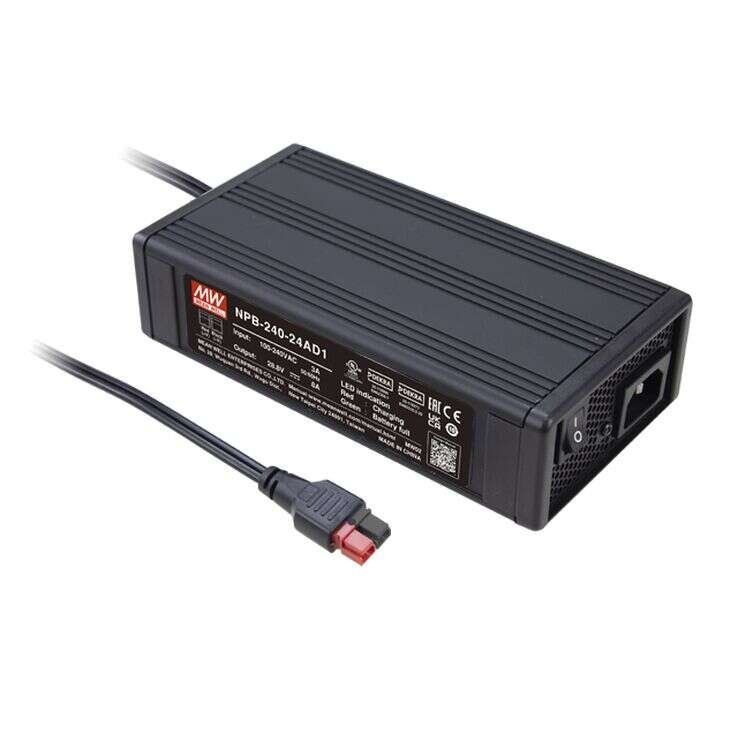

NPB-240 Series
Chargers 205.2–243.2W
NPB-240 Series Main Features:
NPB-240 series is a 240W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries
Models:
Manufacturer:
Type:
Other features:
NPB-240-12XLR / NPB-240-12AD1
NPB-240-12TB / NPB-240-24XLR
NPB-240-24AD1 / NPB-240-24TB
NPB-240-48XLR / NPB-240-48AD1
NPB-240-48TB
MEAN WELL
Charger
90~264Vac universal AC input, built-in PFC
Charger for compatible with lead-acid and
li-ion batteries
Fanless design
2 or 3 stage selectable by DIP S.W
No load power consumption <0.4W(AC
S.W off)
-30~70°C wide operating temperature
Front panel LED indicator for charging status
3 years warranty
Quote Request
| NPB-240-12XLR | NPB-240-12AD1 | NPB-240-12TB | NPB-240-24XLR | NPB-240-24AD1 | NPB-240-24TB | NPB-240-48XLR | NPB-240-48AD1 | NPB-240-48TB | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 205.2 | 205.2 | 205.2 | 243.2 | 243.2 | 243.2 | 243.2 | 243.2 | 243.2 | |||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | |||||||
| Output Current | 13.5A | 13.5A | 13.5A | 8A | 8A | 8A | 4A | 4A | 4A | |||||||
| DC Output Adjustment | 10.5~15.2V | 10.5~15.2V | 10.5~15.2V | 21~30.4V | 21~30.4V | 21~30.4V | 42~60.8V | 42~60.8V | 42~60.8V | |||||||
| Dimensions | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | 180x96x49 | |||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
