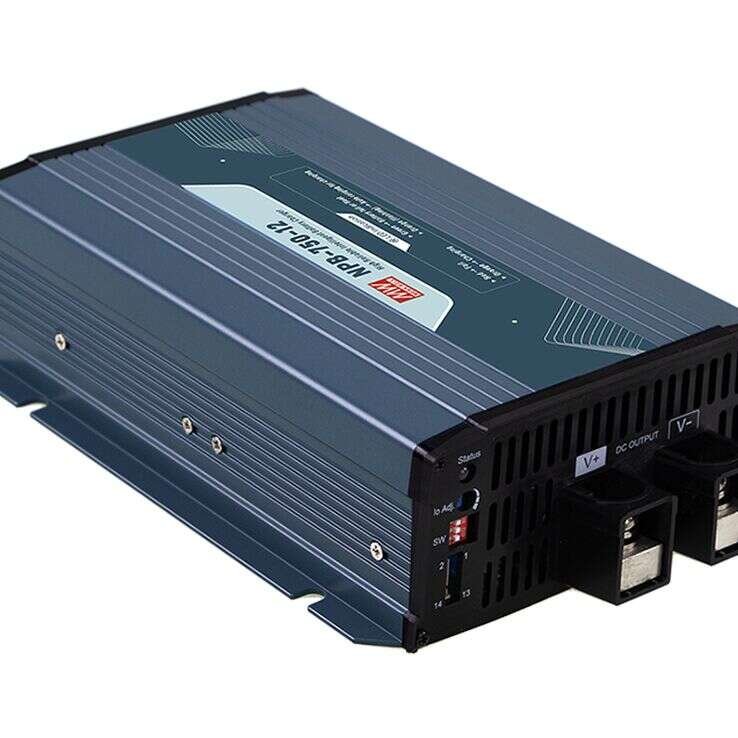

NPB-750 Series
Chargers 722.4–759.4W
NPB-750 Series Main Features:
NPB-750 is a miniaturizes, versatile, and ultra-wide voltage intelligent charger
Models:
Manufacturer:
Type:
Other features:
NPB-750-12 / NPB-750-24
NPB-750-48
MEAN WELL
Charger
Patented auto ranging with ultra
-wide charging voltage
Built-in CANBus protocol for control, set
-ting and monitoring
Programmable 2/3 stage and charging
curve via SBP-001
Manual setting for 2/3 stage and 4 built
-in charging curves via DIP S.W
Charger OK and Battery full signal
Thermal controlled DC fan for noise reduc-tion
Remote ON/OFF control
3 years warranty
Quote Request
| NPB-750-12 | NPB-750-24 | NPB-750-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 722.4 | 756 | 759.4 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 43A | 22.5A | 11.3A | |||||||||||||
| DC Output Adjustment | 10.5~21V | 21~42V | 42~80V | |||||||||||||
| Dimensions | 230x158x67 | 230x158x67 | 230x158x67 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
