Home / LED Driver Indoor Constant Current / NPF-40

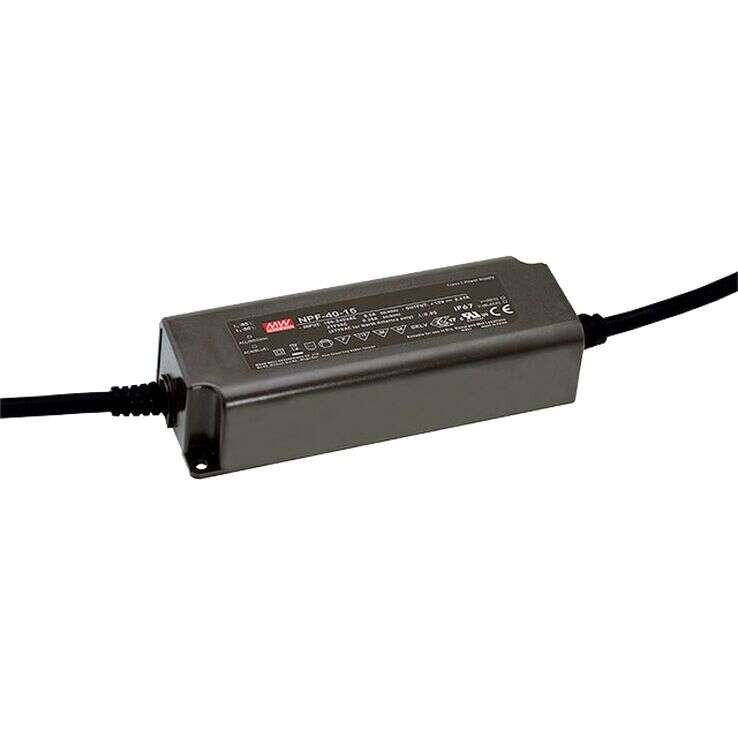

NPF-40 Series

40W Constant Voltage + Constant Current LED Driver

NPF-40

NPF-40 Series Main Features:

High efficiency up to 91%

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Models:

Manufacturer:

Type:

Other features:

NPF-40-12 / NPF-40-15
NPF-40-20 / NPF-40-24
NPF-40-30 / NPF-40-36
NPF-40-42 / NPF-40-48
NPF-40-54

MEAN WELL

Indoor Constant Current LED Driver

Universal AC input (up to 305VAC) /
Full Range

Built-in active PFC function

Cooling by free air convection

Fully isolated plastic case

Class II power unit, no FG

Class 2 power unit

Suitable for dry, damp, wet location

No load power consumption <0.15W

5 years warranty

Quote Request

    NPF-40-12NPF-40-15NPF-40-20NPF-40-24NPF-40-30NPF-40-36NPF-40-42NPF-40-48NPF-40-54
    Wattage404040404040404040
    Input Voltage90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC
    Output Voltage121520243036424854
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    DC output Adjustment7.2-12V9-15V12-20V14.4-24V18-30V21.6-36V25.2-42V28.8-48V32.4-54V
    Dimensions150x53x35150x53x35150x53x35150x53x35150x53x35150x53x35150x53x35150x53x35150x53x35
    Working Temperature-40-+80°C
    Satety StandardsUL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1
    EMC StandardsCompliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A.
