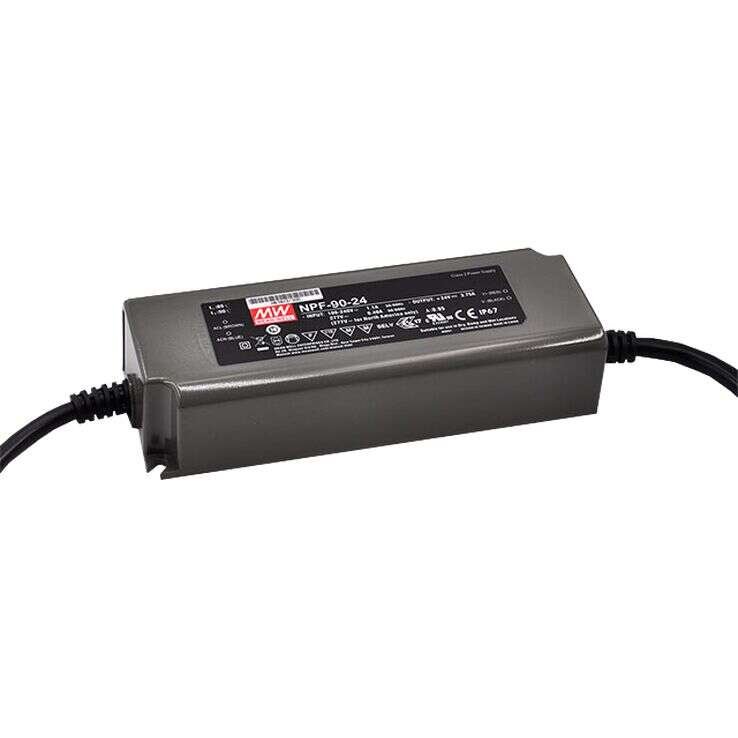

NPF-90 Series

90W Constant Voltage + Constant Current LED Driver

NPF-90

NPF-90 Series Main Features:

Fully encapsulated with IP67 level

High efficiency up to 91%

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Models:

Manufacturer:

Type:

Other features:

NPF-90-12 / NPF-90-15
NPF-90-20 / NPF-90-24
NPF-90-36 / NPF-90-42
NPF-90-48 / NPF-90-54

MEAN WELL

Indoor Constant Current LED Driver

Universal AC input (up to 305VAC) /
Full Range

Built-in active PFC function

Cooling by free air convection

Fully isolated plastic case

Class II power unit, no FG

Suitable for dry, damp, wet location

No load power consumption <0.15W

5 years warranty

Quote Request

    NPF-90-12NPF-90-15NPF-90-20NPF-90-24NPF-90-36NPF-90-42NPF-90-48NPF-90-54
    Wattage9090909090909090
    Input Voltage90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC90~305VAC
    Output Voltage1215202436424854
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingle
    DC output Adjustment7.2-12V9-15V12-20V14.4-24V21.6-36V25.2-42V28.8-48V32.4-54V
    Dimensions171x63x37.5171x63x37.5171x63x37.5171x63x37.5171x63x37.5171x63x37.5171x63x37.5171x63x37.5
    Working Temperature-40-+80°C
    Satety StandardsUL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1
    EMC StandardsCompliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, EN55024, light industry level(surge L-N : 2KV), criteria A.
