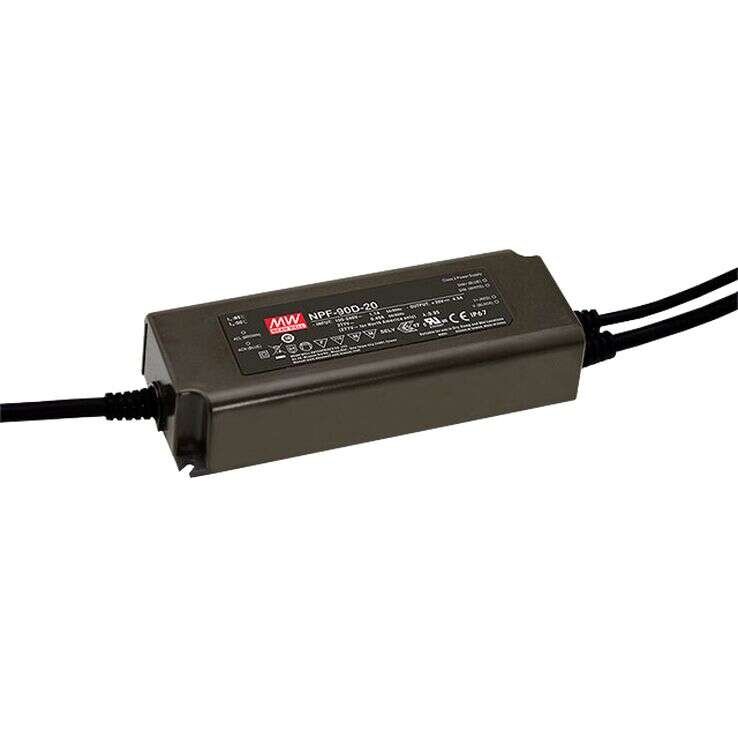

NPF-90D Series
90W Single Output LED Driver
NPF-90D Series Main Features:
High efficiency up to 91%
Fully encapsulated with IP67 level
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
NPF-90D-12 / NPF-90D-15
NPF-90D-20 / NPF-90D-24
NPF-90D-30 / NPF-90D-36
NPF-90D-42 / NPF-90D-48
NPF-90D-54
MEAN WELL
Indoor Constant Current LED Driver
Universal AC input (up to 305VAC) /
Full Range
Built-in active PFC function
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
Built-in 3 in 1 dimming function (0-10Vdc
or PWM signal or resistance)
Suitable for dry, damp, wet location
No load power consumption <0.15W
5 years warranty
Quote Request
| NPF-90D-12 | NPF-90D-15 | NPF-90D-20 | NPF-90D-24 | NPF-90D-30 | NPF-90D-36 | NPF-90D-42 | NPF-90D-48 | NPF-90D-54 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |||||||
| Input Voltage | 90~305VAC | 90~305VAC | 90~305VAC | 90~305VAC | 90~305VAC | 90~305VAC | 90~305VAC | 90~305VAC | 90~305VAC | |||||||
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 | |||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC output Adjustment | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |||||||
| Dimensions | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | 171x63x37.5 | |||||||
| Working Temperature | -40-+80°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 | |||||||||||||||
| EMC Standards | Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, EN55024, light industry level(surge L-N : 2KV), criteria A. | |||||||||||||||
