Home / AC-DC Charger / NPP-1200

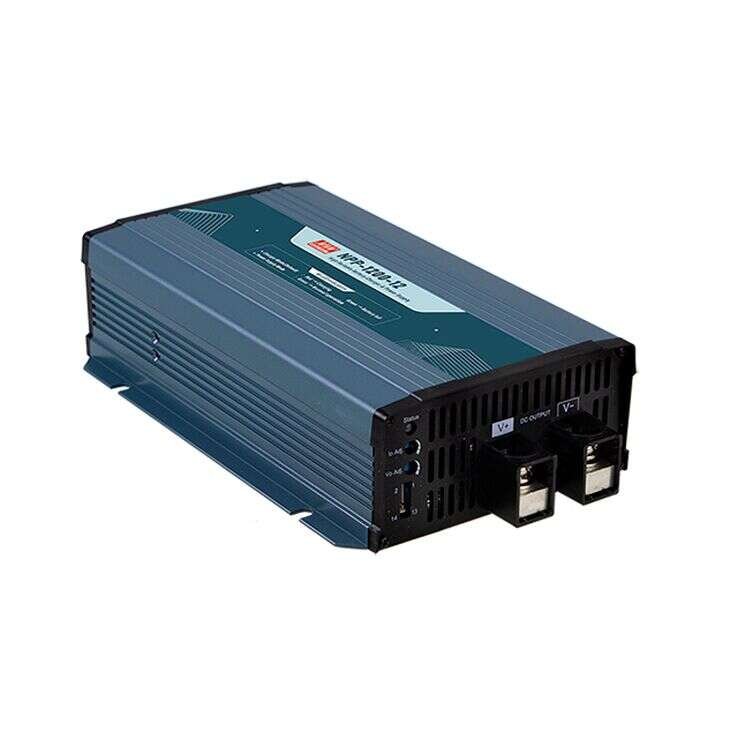

NPP-1200 Series
Chargers 1176–1209.6W
NPP-1200 Series Main Features:
NPP-1200 is a miniaturized dual-purpose charger and power supply
Models:
Manufacturer:
Type:
Other features:
NPP-1200-12 / NPP-1200-24
NPP-1200-48
MEAN WELL
Charger
Multi-function single unit battery charger
or power supply operation modes selectable
Output voltage and current adjustable
via potentiometer
3-stage charging curve for charging mode
Multiple protections: Short circuit/ Over
load/ Over voltage/ Over temperature
Thermal controlled DC fan for noise reduction
Remote ON/OFF control
Suitable for lead-acid (Pb) batteries
3 years warranty
Quote Request
| NPP-1200-12 | NPP-1200-24 | NPP-1200-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1176 | 1209.6 | 1209.6 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 70A | 36A | 18A | |||||||||||||
| DC Output Adjustment | 10.5~21V | 21~42V | 42~80V | |||||||||||||
| Dimensions | 250x158x67 | 250x158x67 | 250x158x67 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
