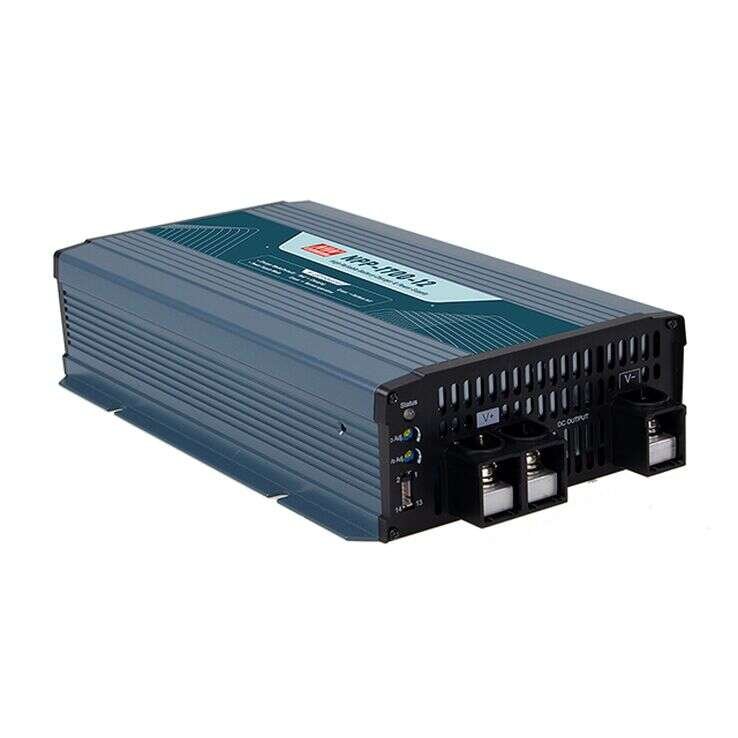

NPP-1700 Series
Chargers 1428–1680W
NPB-1700 Series Main Features:
NPP-1700 is a miniaturizes dual-purpose charger and power supply
Models:
Manufacturer:
Type:
Other features:
NPP-1700-12 / NPP-1700-24
NPP-1700-48
MEAN WELL
Charger
Multi-function single unit battery charger
or power supply operation modes selectable
Ultra-wide output voltage (10.5~21V, 21~
42V, 42~80V)
Output voltage and current adjustable
via potentiometer
3-stage charging curve for charging mode
Thermal controlled DC fan for noise reduc-tion
Multiple protections: Short circuit / Over
load / Over voltage / Over temperature
3 years warranty
Quote Request
| NPP-1700-12 | NPP-1700-24 | NPP-1700-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1428 | 1680 | 1680 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 85A | 50A | 25A | |||||||||||||
| DC Output Adjustment | 10.5~21V | 21~42V | 42~80V | |||||||||||||
| Dimensions | 300x184x70 | 300x184x70 | 300x184x70 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||||||||||||||
