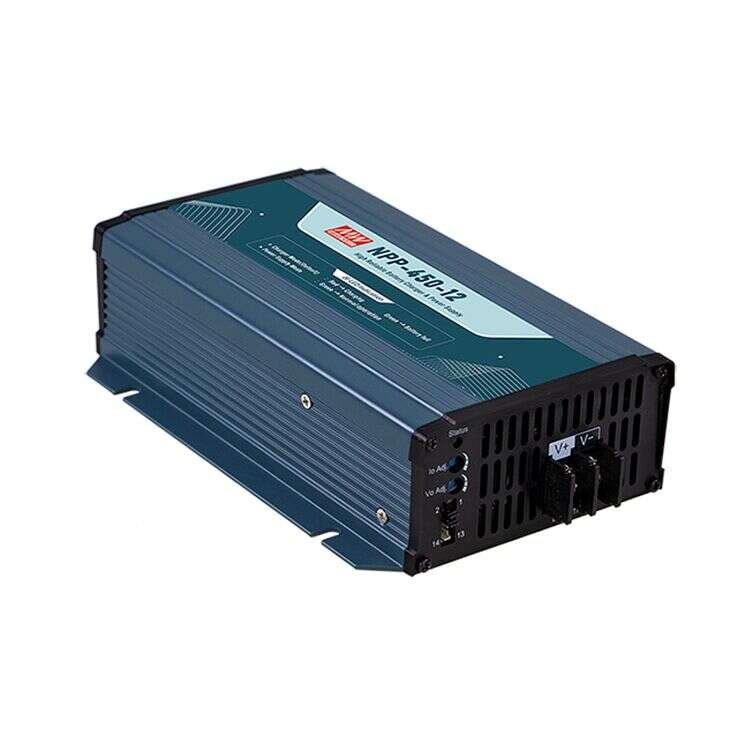

NPP-450 Series
Chargers 420–462W
NPP-450 Series Main Features:
NPP-450 is a miniaturized dual-purpose charge and power supply
Models:
Manufacturer:
Type:
Other features:
NPP-450-12 / NPP-450-24
NPP-450-48 / NPP-450-72
MEAN WELL
Charger
Multi-function single unit battery charger
or power supply operation modes selectable
Output voltage and current adjustable
via potentiometer
3-stage charging curve for charging mode
Multiple protections: short circuit/ over
load/ over voltage/over temperature
No load power consumption <0.4W(AC
S.W off)
Thermal controlled DC fan for noise reduc-tion
Remote ON/OFF control
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| NPP-450-12 | NPP-450-24 | NPP-450-48 | NPP-450-72 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 420 | 453.6 | 456.96 | 462 | ||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | ||||||||||||
| Output Current | 25A | 13.5A | 6.8A | 5.5A | ||||||||||||
| DC Output Adjustment | 10.5~21V | 21~42V | 42~80V | 54~100V | ||||||||||||
| Dimensions | 205x135x55 | 205x135x55 | 205x135x55 | 205x135x55 | ||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
