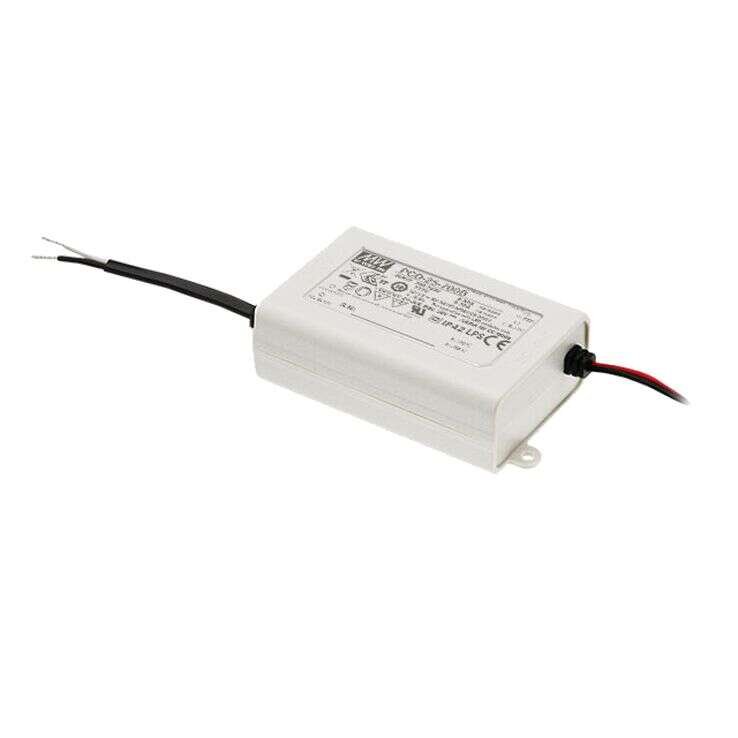

PCD-25 Series
25W Single Output AC Dimmable LED Power Supply
PCD-25 Series Main Features:
AC phase-cut dimming
Constant current design
Protections: Short circuit/ Over temperature
Models:
Manufacturer:
Type:
Other features:
PCD-16-350B / PCD-16-700B
PCD-16-1050B / PCD-16-1400B
MEAN WELL
Indoor Constant Current LED Driver
180~295VAC input
Fully isolated plastic case
Built-in active PFC function
IP30 design
Class 2 power unit/ Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
3 years warranty
Quote Request
| PCD-25-350B | PCD-25-700B | PCD-25-1050B | PCD-25-1400B | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 20 | 20 | 20 | ||||||||||||
| Input Voltage | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | ||||||||||||
| Output Current | 350mA | 700mA | 1050mA | 1400mA | ||||||||||||
| Output Voltage | 40~58V | 24~36V | 16~24V | 12~18V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Dimensions | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | ||||||||||||
| Working Temperature | -30-+50°C | |||||||||||||||
| Satety Standards | UL8750, ENEC EN61347-2-13 approved | |||||||||||||||
| EMC Standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 | |||||||||||||||
