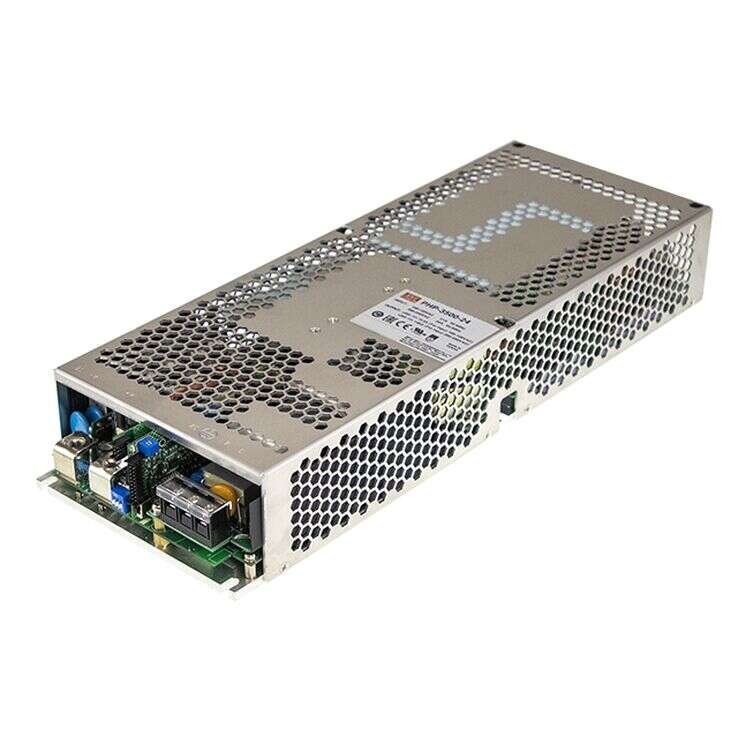

PHP-3500 Series
Enclosed Power Supplies 3500W
PHP-3500 Series Main Features:
Slim and Low profile (60mm)
Fanless design, cooling by water conduction
Models:
Manufacturer:
Type:
Other features:
PHP-3500-24 / PHP-3500-48
MEAN WELL
Programmable Power Supplies
Built-in active PFC function
Output voltage and constant current level programmable
Protections: Short circuit / Overload /
Over voltage / Over temperature
Output voltage and constant current
level programmable
Built-in PMBus communication proto
-col, CANbus optional
Optional cold plate for quick implemena-
tation
5 years warranty
Quote Request
| PHP-3500-24 | PHP-3500-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3500 | 3500 | ||||||||||||||
| Input Voltage | 90-264VAC 250-370VDC | 90-264VAC 250-370VDC | ||||||||||||||
| Output Current | 145A | 73A | ||||||||||||||
| Output Voltage | 24V | 48V | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| Dimensions | 380x141.4x60 | 380x141.4x60 | ||||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved ; design refers to EN61558-1, EN60335-1 | |||||||||||||||
| EMC Standards | EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
