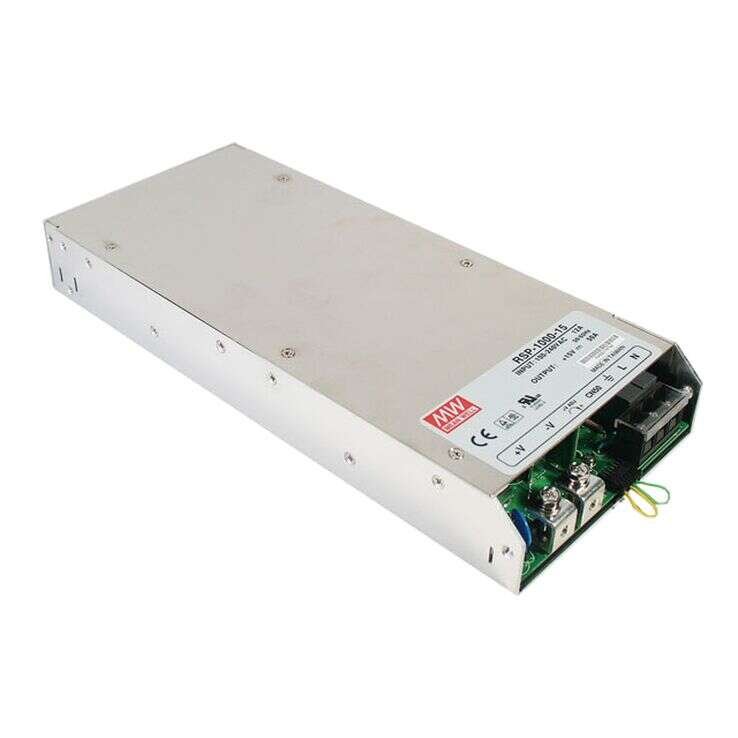

RSP-1000 Series
Enclosed Power Supplies 750–1008W
RPS-750 Series Main Features:
1U low profile
Universal AC input/ Full range
PF >0.98@115VAC; >0.95@230VAC
Models:
Manufacturer:
Type:
Other features:
RSP-1000-12 / RSP-1000-15
RSP-1000-24 / RSP-1000-27
RSP-1000-48
MEAN WELL
Programmable Power Supplies
High power density 10.7W/in³
Output voltage can be trimmed be
-tween 40~110% of the rated output
voltage
DC OK signal output
Current sharing up to 4000W (3+1)
Built-in remote sense and ON/OFF control
Built-in 5v/0.5A auxiliary power
5 years warranty
Quote Request
| RSP-1000-12 | RSP-1000-15 | RSP-1000-24 | RSP-1000-27 | RSP-1000-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 750 | 750 | 960 | 999 | 1008 | |||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||
| Output Current | 0~60A | 0~50A | 0~40A | 0~37A | 0~21A | |||||||||||
| Output Voltage | 12V | 15V | 24V | 27V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 10~13.5V | 13.5~16.5V | 20~26.4v | 24~30V | 43~55V | |||||||||||
| Dimensions | 295x127x41 | 295x127x41 | 295x127x41 | 295x127x41 | 295x127x41 | |||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | |||||||||||||||
