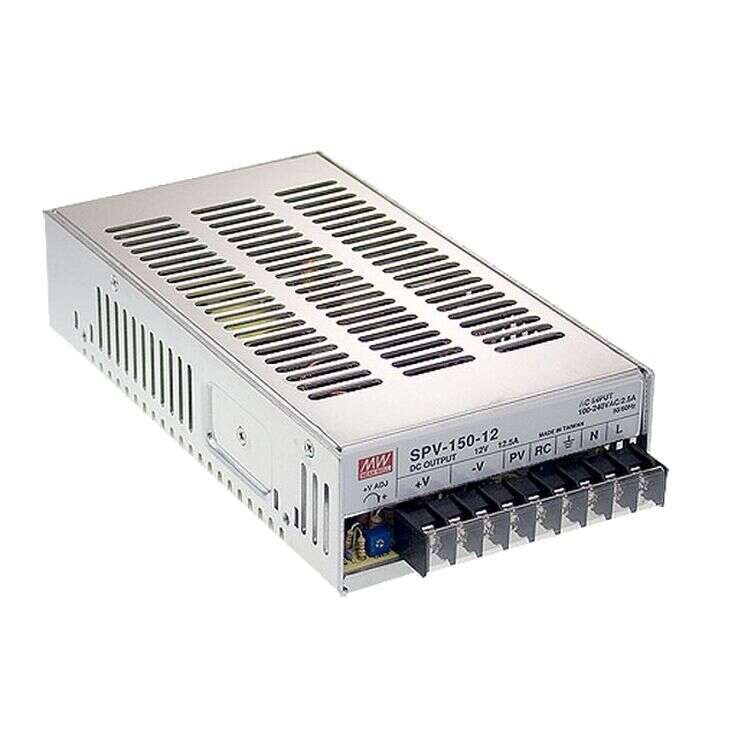

SPV-150 Series
Enclosed Power Supplies 150W
SPV-150 Series Main Features:
Output voltage programmable from 20-110% by 1-5.5 VDC external control signal
Built-in active PFC function, PF>0.95
Models:
Manufacturer:
Type:
Other features:
SPV-150-12 / SPV-150-24 / SPV-150-48
MEAN WELL
Programmable Power Supplies
Protection: Short circuit / Overload/
Over voltage/ Over temperature
Universal AC input/ Full range
Cooling by free air convection
3 years warranty
Quote Request
| SPV-150-12 | SPV-150-24 | SPV-150-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 150 | 150 | 150 | |||||||||||||
| Input Voltage | 88~264VAC 124~370VDC | 88~264VAC 124~370VDC | 88~264VAC 124~370VDC | |||||||||||||
| Output Current | 0~12.5A | 0~6.25A | 0~3.125A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | -15%~+10% rated output voltage | -15%~+10% rated output voltage | -15%~+10% rated output voltage | |||||||||||||
| Dimensions | 215x115x50 | 215x115x50 | 215x115x50 | |||||||||||||
| Working Temperature | -40~+85°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024, light industry level, criteria A | |||||||||||||||
