Home / AC-DC Programmable Power Type / RST-5000

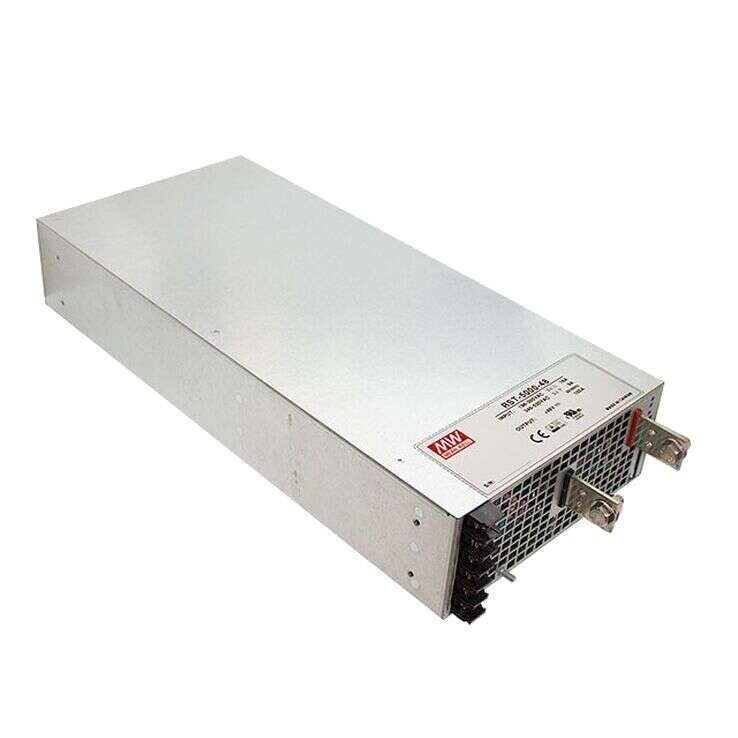

RST-5000 Series
Enclosed Power Supplies 4800–5040W
RST-5000 Series Main Features:
3 Phase 3 wire Δ AC 340~530V or 3 Phase 4 wire Y AC 196~305V wide range input
High Efficiency up to 91%
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
RST-5000-24 / RST-5000-48
MEAN WELL
Programmable Power Supplies
Protections: Short circuit/ Overload/
Over voltage/ Over temperature/ Fan alarm
Forced air cooling by built-in DC with
fan speed control function
Output voltage can be trimmed be
-tween 20~120% of the rated output voltage
Current sharing up to 4 units
Built-in 12V/ 0.1A auxiliary output for re
-mote control
Built-in remote ON-OFF control
5 years warranty
Quote Request
| RST-5000-24 | RST-5000-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 4800 | 4800 | ||||||||||||||
| Input Voltage | 3 Phase 3 wire N AC 196~305V or 3 Phase 4 wire Y AC 340~530V wide range input | 3 Phase 3 wire N AC 196~305V or 3 Phase 4 wire Y AC 340~530V wide range input | ||||||||||||||
| Output Current | 0~200A | 0~105A | ||||||||||||||
| Output Voltage | 24V | 48V | ||||||||||||||
| Output Voltage Options | Single | Single | ||||||||||||||
| DC Output Adjustment | 23.5~28.8V | 23.5~28.8V | ||||||||||||||
| Dimensions | 460x211x83.5 | 460x211x83.5 | ||||||||||||||
| Working Temperature | -40~+85°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class A, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A | |||||||||||||||
