Home / LED Driver Indoor Constant Current / PLC-100

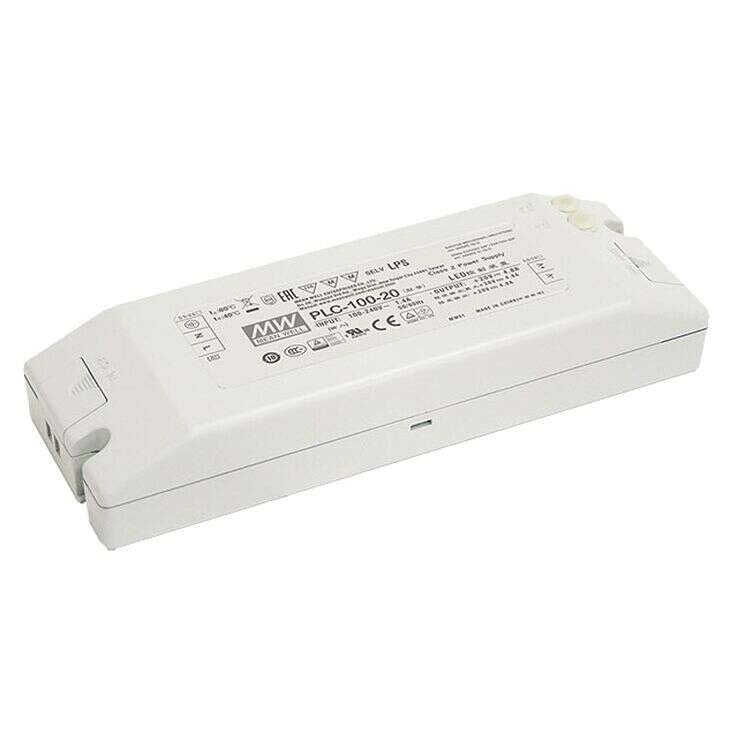

PLC-100 Series
100W Single Output Switching Power Supply
PLC-100 Series Main Features:
Built-in constant current limiting circuit (C.V. + C.C. mode)
Protections: Short circuit/ Over current/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
PLC-100-12 / PLC-100-15
PLC-100-20 / PLC-100-24
PLC-100-27 / PLC-100-36
PLC-100-48
MEAN WELL
Indoor Constant Current LED Driver
Universal AC input / full range
Fully isolated plastic case with screw termi
-nal style of I/O
Adjustable output voltage and current level
Built-in active PFC function
High efficiency up to 90%
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
100% full load burn-in test
2 years warranty
Quote Request
| PLC-100-12 | PLC-100-15 | PLC-100-20 | PLC-100-24 | PLC-100-27 | PLC-100-36 | PLC-100-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||
| Output Voltage | 12V | 15V | 20V | 24V | 27V | 36V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 9~12V | 11.25~15V | 15~20V | 18~24V | 20.25~27V | 27~36V | 36~48V | |||||||||
| Dimensions | 200.5x69.5x35 | 200.5x69.5x35 | 200.5x69.5x35 | 200.5x69.5x35 | 200.5x69.5x35 | 200.5x69.5x35 | 200.5x69.5x35 | |||||||||
| Working Temperature | -30-+50°C | |||||||||||||||
| Satety Standards | UL1310, TUV BS EN/EN60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2,-3, Class C (≧70% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
