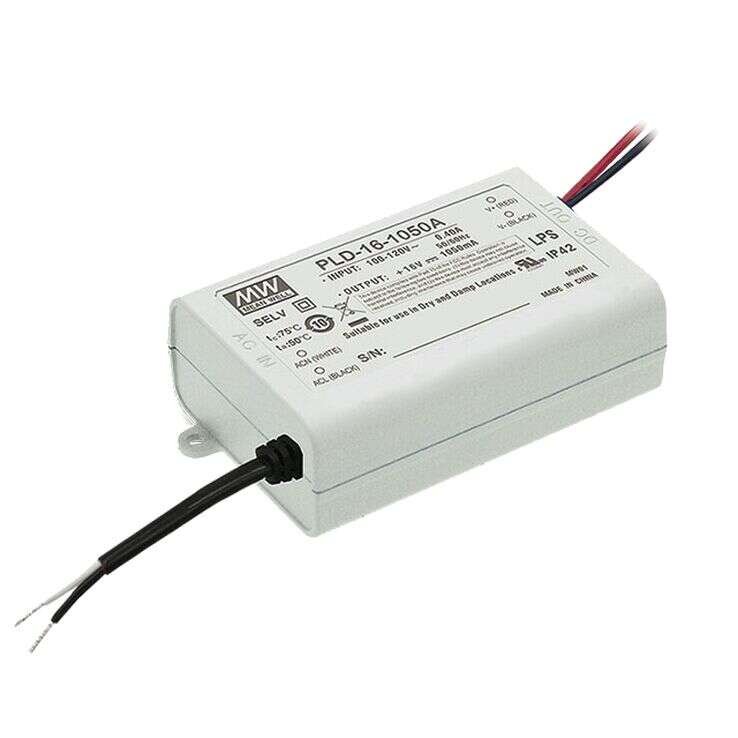

PLD-16 Series
16W Single Output LED Power Supply
PLD-16 Series Main Features:
Built-in active PFC function
Constant current design
Protections: Short circuit/ Over temperature
Models:
Manufacturer:
Type:
Other features:
PLD-16-350B / PLD-16-700B
PLD-16-1050B / PLD-16-1400B
MEAN WELL
Indoor Constant Current LED Driver
Fully isolated plastic case
Constant current design
Class 2 power unit/ Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
3 years warranty
Quote Request
| PLD-16-350B | PLD-16-700B | PLD-16-1050B | PLD-16-1400B | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 16 | 16 | 16 | 16 | ||||||||||||
| Input Voltage | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | ||||||||||||
| Output Voltage | 60V | 35V | 25V | 16V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 24~48V | 16~24V | 12~16V | 8~12V | ||||||||||||
| Dimensions | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | ||||||||||||
| Working Temperature | -30-+50°C | |||||||||||||||
| Satety Standards | UL8750,CSA C22.2 No.250.0-08;ENEC BS EN/EN 613471-1,BS EN/EN 61347-2-13 independent, BS EN/EN62384(for B type only), EAC TP TC 004, IP42 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment(A type only), EAC TP TC 020 | |||||||||||||||
