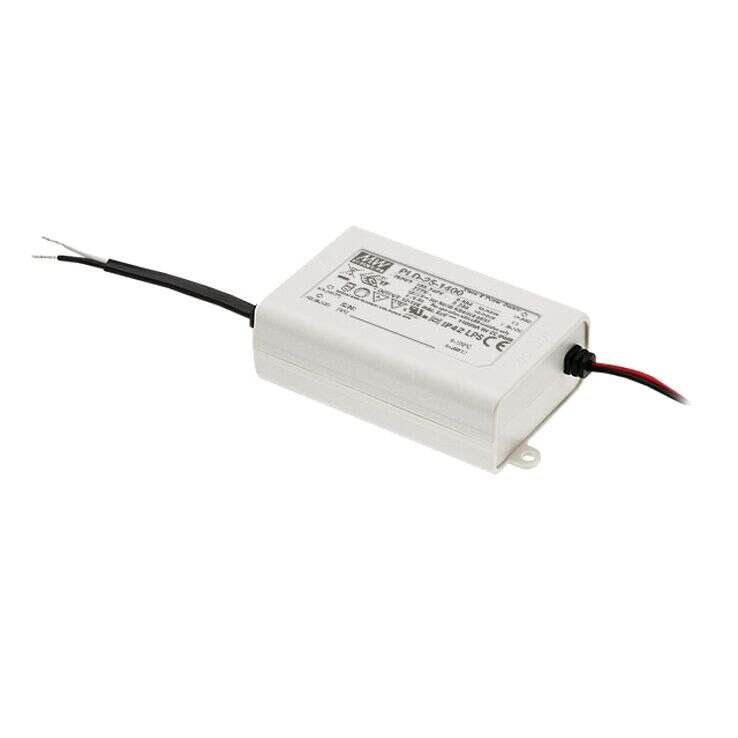

PLD-25 Series
25W Single Output LED Power Supply
PLD-16 Series Main Features:
Built-in active PFC function
Constant current design
Protections: Short circuit/ Over temperature
Models:
Manufacturer:
Type:
Other features:
PLD-25-350 / PLD-25-700
PLD-25-1050 / PLD-25-1400
MEAN WELL
Indoor Constant Current LED Driver
Fully isolated plastic case
Constant current design
Class 2 power unit/ Pass LPS
Isolation class II, no F.G.
Cooling by free air convection
3 years warranty
Quote Request
| PLD-25-350 | PLD-25-700 | PLD-25-1050 | PLD-25-1400 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 25 | 25 | 25 | ||||||||||||
| Input Voltage | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | ||||||||||||
| Output Voltage | 60V | 50V | 35V | 25V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 40~58V | 24~36V | 16~24V | 12~18V | ||||||||||||
| Dimensions | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | 84x57x29.5 | ||||||||||||
| Working Temperature | -30-+60°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, BS EN/EN 62384, EAC TP TC 004, IP42 approved ; design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≦75% load) ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment, EAC TP TC 020 | |||||||||||||||
