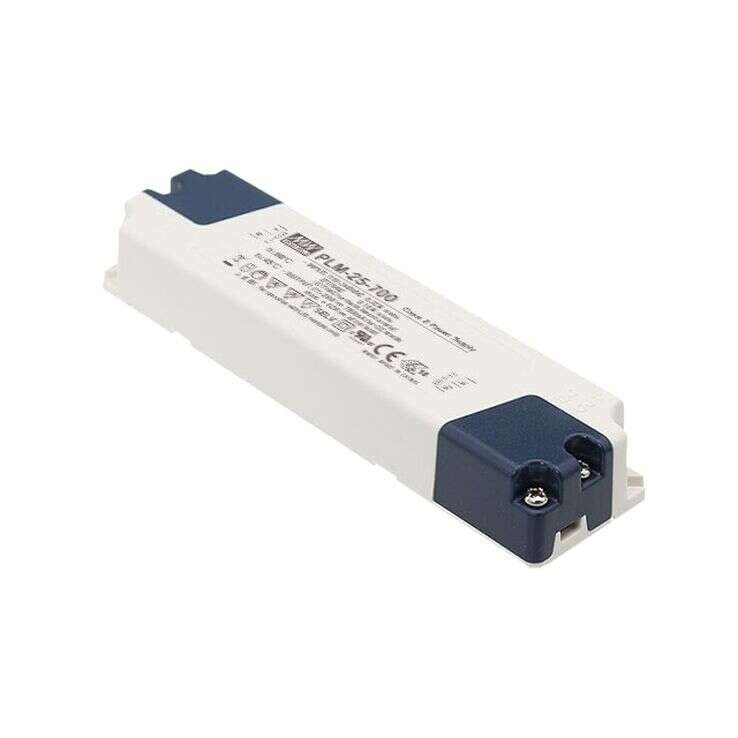

PLM-25 Series
25W Single Output LED Power Supply
PLM-12 Series Main Features:
Built-in active PFC function
Constant current design
Protections: Short circuit
Models:
Manufacturer:
Type:
Other features:
PLM-25-350 / PLM-12-500
PLM-25-700 / PLM-25-1050
MEAN WELL
Indoor Constant Current LED Driver
Fully isolated plastic case
Universal input/ Full range (110~295VAC)
No load power consumption <0.5W
Small and compact size
100% full load burn-in test
Class II power unit, no FG
High reliability, low cost
Cooling by free air convection
Suitable for LED lighting and moving
sign applications
2 years warranty
Quote Request
| PLM-25-350 | PLM-25-500 | PLM-25-700 | PLM-25-1050 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 25.2 | 25 | 25.2 | 25.2 | ||||||||||||
| Input Voltage | 110~295VAC 156~417VDC | 110~295VAC 156~417VDC | 110~295VAC 156~417VDC | 110~295VAC 156~417VDC | ||||||||||||
| Output Voltage | 80V | 56V | 42V | 28V | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 42~72V | 30~50V | 21~36V | 14~24V | ||||||||||||
| Dimensions | 145x38x22 | 145x38x22 | 145x38x22 | 145x38x22 | ||||||||||||
| Working Temperature | -30-+45°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384,GB19510.14,GB19510.1(for E type only),EAC TP TC 004, IP30 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, GB/T 17743,GB17625.1(for E type only),BS EN/EN61000-3-2 Class C(≥60% load); BS EN/EN61000-3-3,EAC TP TC 020 | |||||||||||||||
