Home / LED Driver Indoor Constant Current / PLN-20

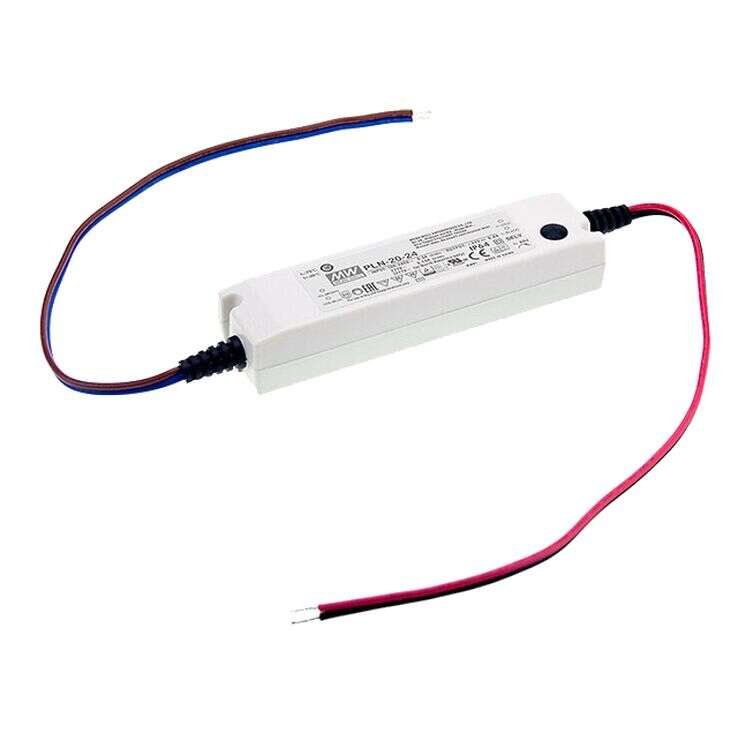

PLN-20 Series
20W Single Output LED Power Supply
PLN-20 Series Main Features:
Built-in constant current limiting circuit (C.V. + C.C. mode)
Fully isolated plastic case with IP64 level
Universal AC input / Full Range
Models:
Manufacturer:
Type:
Other features:
PLN-20-12 / PLN-20-18
PLN-20-24 / PLN-20-36
PLN-20-48
MEAN WELL
Indoor Constant Current LED Driver
Protections: Short circuit/ Overload/
Over voltage/ Over temperature
Built-in active PFC function, PF>0.9 for
75% of load or higher
Class 2 power unit/ Pass LPS
Isolation class II, no F.G.
Current protection level
Cooling by free air convection
2 years warranty
Quote Request
| PLN-20-12 | PLN-20-18 | PLN-20-24 | PLN-20-36 | PLN-20-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 20 | 20 | 20 | 20 | 20 | |||||||||||
| Input Voltage | 90~277VAC 127~392VDC | 90~277VAC 127~392VDC | 90~277VAC 127~392VDC | 90~277VAC 127~392VDC | 90~277VAC 127~392VDC | |||||||||||
| Output Voltage | 12V | 18V | 24V | 36V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 9~12V | 13.5~18V | 18~24V | 27~36V | 36~48V | |||||||||||
| Dimensions | 148.5x38.5x28 | 148.5x38.5x28 | 148.5x38.5x28 | 148.5x38.5x28 | 148.5x38.5x28 | |||||||||||
| Working Temperature | -30-+50°C | |||||||||||||||
| Satety Standards | UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384,GB19510.14,GB19510.1(for E type only),EAC TP TC 004,IP30 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, GB/T 17743,GB17625.1(for E type only),BS EN/EN61000-3-2 Class C(≥60% load); BS EN/EN61000-3-3,EAC TP TC 020 | |||||||||||||||
