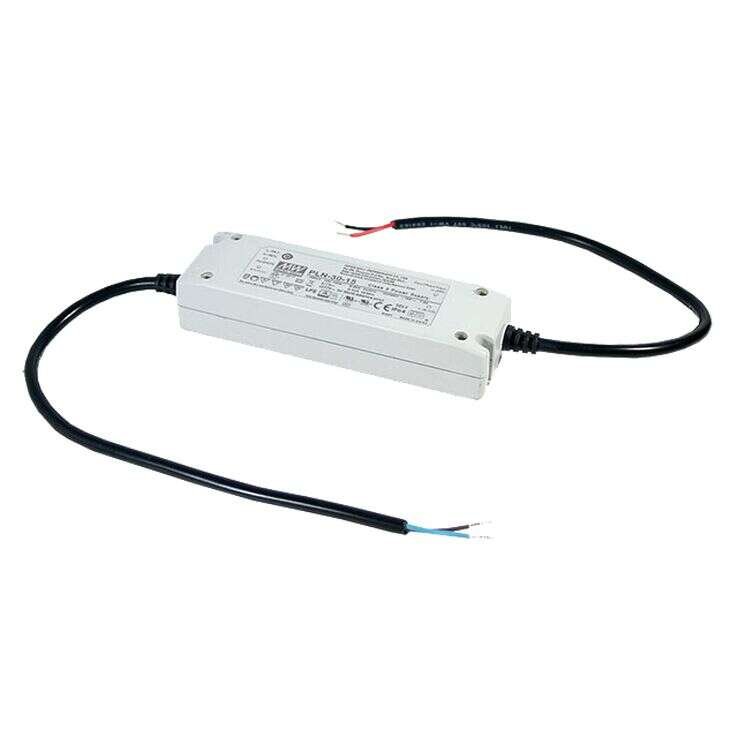

PLN-30 Series
30W Single Output LED Power Supply
PLN-30 Series Main Features:
Built-in constant current limiting circuit (C.V. + C.C. mode)
Fully isolated plastic case with IP64 level
Universal AC input / Full Range
Models:
Manufacturer:
Type:
Other features:
PLN-30-9 / PLN-30-12
PLN-30-15 / PLN-30-20
PLN-30-24 / PLN-30-27
PLN-30-36 / PLN-30-48
MEAN WELL
Indoor Constant Current LED Driver
Protections: Short circuit/ Overload/
Over voltage/ Over temperature
Built-in active PFC function, PF>0.9 for
75% of load or higher
Class 2 power unit/ Pass LPS
Isolation class II, no F.G.
User adjustable output voltage and
current protection level
Cooling by free air convection
2 years warranty
Quote Request
| PLN-30-9 | PLN-30-12 | PLN-30-15 | PLN-30-20 | PLN-30-24 | PLN-30-27 | PLN-30-36 | PLN-30-48 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||
| Input Voltage | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | ||||||||
| Output Voltage | 9V | 12V | 15V | 20V | 24V | 27V | 36V | 48V | ||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | ||||||||
| DC Output Adjustment | 6.3~9V | 8.4~12V | 10.5~15V | 14~20V | 16.8~24V | 18.9~27V | 25.2~36V | 33.6~48V | ||||||||
| Dimensions | 145x47x30 | 145x47x30 | 145x47x30 | 145x47x30 | 145x47x30 | 145x47x30 | 145x47x30 | 145x47x30 | ||||||||
| Working Temperature | -30-+50°C | |||||||||||||||
| Satety Standards | UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004,IP64 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (pin≧25W), Class D (>70% load) ; BS EN/EN61000-3-3; EAC TP TC 020 | |||||||||||||||
