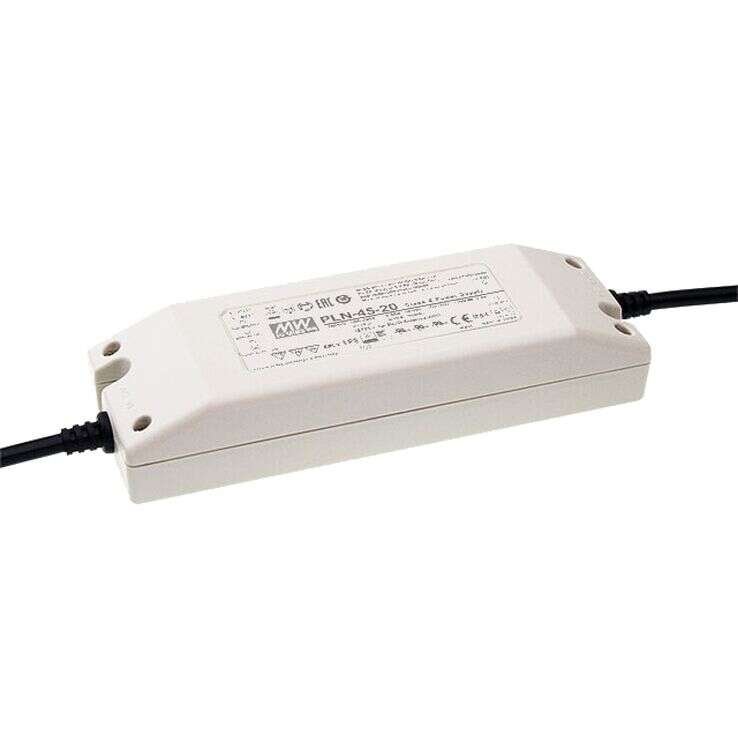

PLN-45 Series
45W Single Output LED Power Supply
PLN-45 Series Main Features:
Built-in constant current limiting circuit (C.V. + C.C. mode)
Fully isolated plastic case with IP64 level
Universal AC input / Full Range
Models:
Manufacturer:
Type:
Other features:
PLN-45-12 / PLN-45-15
PLN-45-20 / PLN-45-24
PLN-45-27 / PLN-45-36
PLN-45-48
MEAN WELL
Indoor Constant Current LED Driver
Protections: Short circuit/ Overload/
Over voltage/ Over temperature
Built-in active PFC function, PF>0.9 for
75% of load or higher
User adjustable output voltage and current protection level
Class 2 power unit/ Pass LPS
Cooling by free air convection
2 years warranty
Quote Request
| PLN-45-12 | PLN-45-15 | PLN-45-20 | PLN-45-24 | PLN-45-27 | PLN-45-36 | PLN-45-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |||||||||
| Input Voltage | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | 90~295VAC 127~417VDC | |||||||||
| Output Voltage | 12V | 15V | 20V | 24V | 27V | 36V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 9~12V | 11.25~15V | 15~20V | 18~24V | 20.25~27V | 27~36V | 36~48V | |||||||||
| Dimensions | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | 181x61.5x35 | |||||||||
| Working Temperature | -30-+50°C | |||||||||||||||
| Satety Standards | UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, IP64 approved, design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3;EAC TP TC 020 | |||||||||||||||
