Home / LED Driver PCB Type / PLP-60

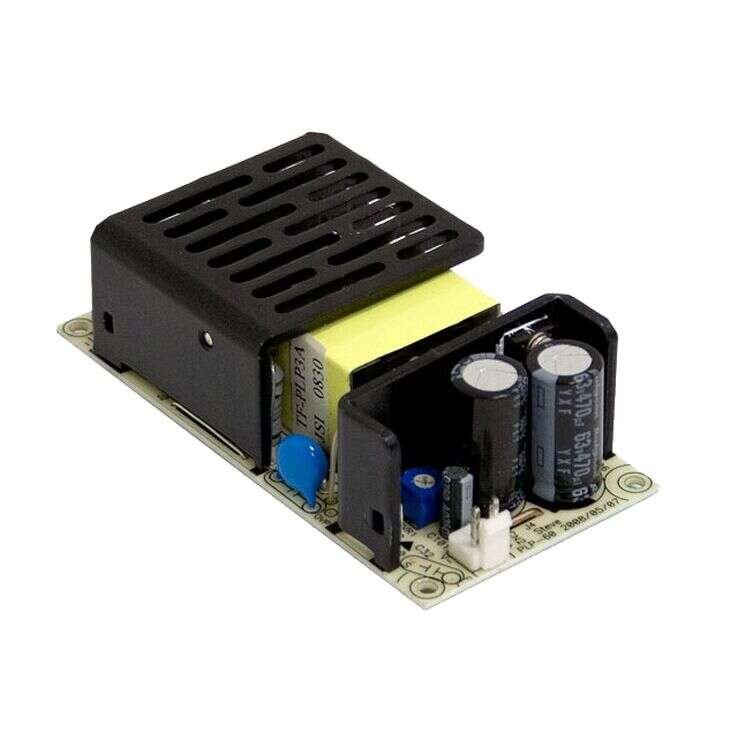

PLP-60 Series
60W Single Output LED Power Supply
PLP-60 Series Main Features:
Universal AC input / Full range
Protections: Short circuit / Over current / Over voltage
Cooling by free air convection
Models:
Manufacturer:
Type:
Other features:
PLP-60-12 / PLP-60-24
PLP-60-48
MEAN WELL
PCB Type LED Driver
Class 2 power unit
Built-in active PFC function
Output current level adjustable
High reliability
Suitable for built-in applications of LED lighting
100% full load burn-in test
2 years warranty
Quote Request
| PLP-60-12 | PLP-60-24 | PLP-60-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 62.4 | |||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||||
| Output Current | 5A | 2.5A | 1.3A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Option | Single | Single | Single | |||||||||||||
| Dimensions | 101.6x50.8x29.6 | 101.6x50.8x29.6 | 101.6x50.8x29.6 | |||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | GB19510.1,GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004 approved ; design refer to UL60950-1 | |||||||||||||||
| EMC Standards | Compliance to GB/T 17743, GB17625.1, BS EN/EN55015, BS EN/EN61000-3-2 Class C(≧75% load); BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||||||||
