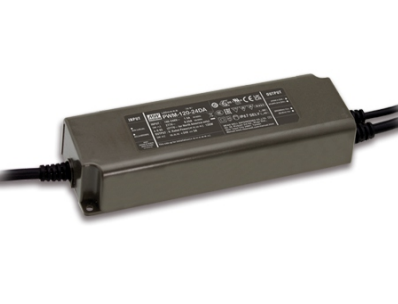

PWM-120IoT Series

120W Wireless Lighting Constant Voltage LED Driver Solution

PWM-120IoT

PWM-120IoT Series Main Features:

Constant voltage PWM style output with frequency up to 4KHz compliant IEEE1789-2015 no risk

Models:

Manufacturer:

Type:

Other features:

PWM-120-12BLE / PWM-120-24BLE
PWM-120-48BLE

MEAN WELL

Indoor Constant Voltage LED Driver

Bluetooth Mesh Dimming Function

Plastic housing with class II design

Built-in active PFC function

Typical lifetime>50000 hours and 5 years warranty

Quote Request

    PWM-120-12BLEPWM-120-24BLEPWM-120-48BLE
    Wattage120120120
    Input Voltage90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC    		90~305VAC
    127~431VDC
    Output Current10A5A2.5A
    Output Voltage OptionsSingleSingleSingle
    Output Voltage12V24V48V
    Dimensions191x63x37.5191x63x37.5191x63x37.5
    Working Temperature20-+90°C
    Satety StandardsUl8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, Ip67(except BLE type),BIS IS15885( for PWM-120-12,24 only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1
    EMC StandardsCompliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020
