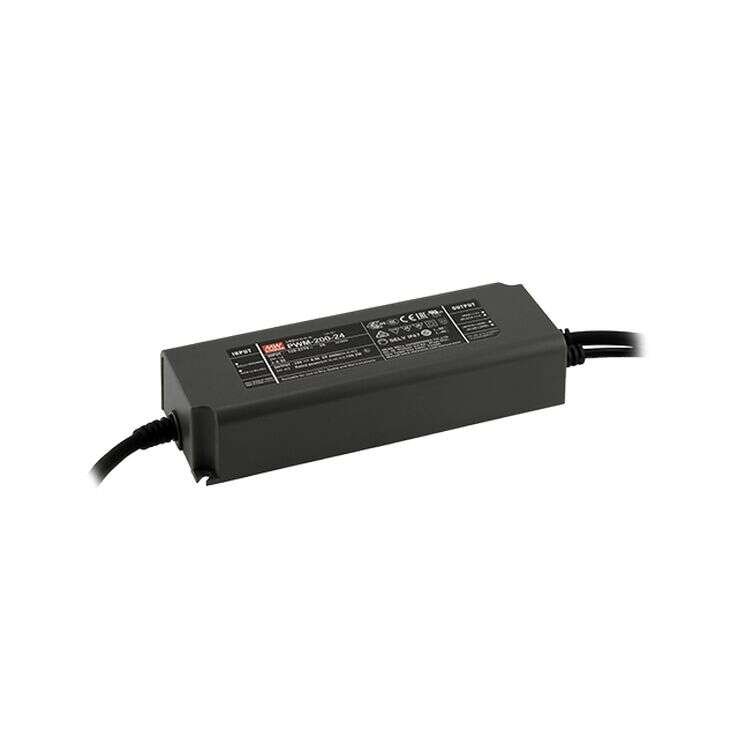

PWM-200 Series
200W Constant Voltage PWM Output LED Driver
PWM-200 Series Main Features:
PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature when driving all kinds of LED strips
Models:
Manufacturer:
Type:
Other features:
PWM-200-12 / PWM-200-24
PWM-200-36 / PWM-200-48
MEAN WELL
Indoor Constant Voltage LED Driver
Constant voltage PWM style output
with frequency up to 4kHz IEEE1789-2015
Plastic housing with class II and PFC design
Emergency lighting application is avail
-able according to IEC61347-2-13
Standby power consumption <0.5W
Fully encapsulated with IP67 level
Function options:3 in 1 dimming (dim-to
-off and Isolated Design) DALI-2
Minimum dimming level 0.2% for DA2 type
Typical lifetime >50000hrs and 5 years warranty
Quote Request
| PWM-200-12 | PWM-200-24 | PWM-200-36 | PWM-200-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 180 | 199.2 | 199.8 | 200.1 | ||||||||||||
| Input Voltage | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | 100~305VAC 142~431VDC | ||||||||||||
| Output Current | 15A | 8.3A | 5.55A | 4.17A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Dimensions | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | 195x68x39.5 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14, IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020 | |||||||||||||||
