Home / LED Driver Indoor Constant Voltage / PWM-40

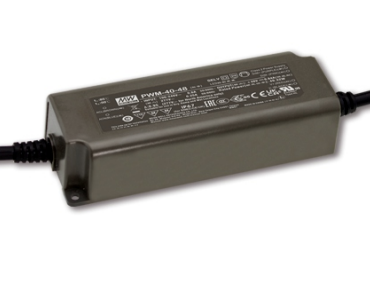

PWM-40 Series
40W Constant Voltage PWM Output LED Driver
PWM-40 Series Main Features:
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Constant voltage PWM style output
Models:
Manufacturer:
Type:
Other features:
PWM-40-12 / PWM-40-24
PWM-40-36 / PWM-40-48
MEAN WELL
Indoor Constant Voltage LED Driver
Built-in 3 in 1 dimming function (0-10Vdc
or PWM signal or resistance)
Dimming range : 0 - 100%
High efficiency up to 90%
Class II power unit, no FG
Class 2 power unit
Suitable for dry / damp / wet locations
No load power consumption <0.5W
Protections: Short circuit / Over load /
Over voltage / Over temperature
3 years warranty
Quote Request
| PWM-40-12 | PWM-40-24 | PWM-40-36 | PWM-40-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 40 | 40 | 40 | 40 | ||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||
| Output Current | 3.34A | 1.67A | 1.12A | 0.84A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Dimensions | 150x53x35 | 150x53x35 | 150x53x35 | 150x53x35 | ||||||||||||
| Working Temperature | -25-+65°C | |||||||||||||||
| Satety Standards | UL8750( type ”HL” ), UL879( for 12V,24V only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, IP67,BIS IS15885( for 12V,24V only), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020 | |||||||||||||||
