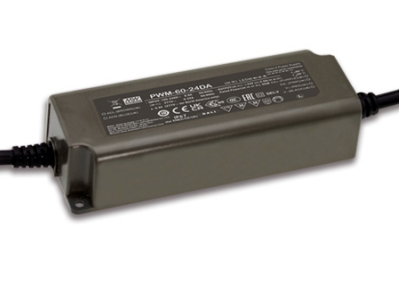

PWM-60-DA Series
60W Constant Voltage PWM Output LED Driver
PWM-60-DA Series Main Features:
DALI Dimming Function
Constant voltage PWM style output
Built-in active PFC function
Models:
Manufacturer:
Type:
Other features:
PWM-60-12DA / PWM-60-24DA
PWM-60-36DA / PWM-60-48DA
MEAN WELL
Indoor Constant Voltage LED Driver
Plastic housing with class II design
Fully incapsulated with IP67 level
High efficiency up to 90.5%
Function options: 3 in 1 dimming (dim-
to-off) ; DALI
Typical lifetime>50000 hours
No load power consumption <0.5W / stand
-by power consumption <0.5W(DA-type)
5 years warranty
Quote Request
| PWM-60-12DA | PWM-60-24DA | PWM-60-36DA | PWM-60-48DA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | ||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | ||||||||||||
| Output Current | 5A | 2.5A | 1.67A | 1.25A | ||||||||||||
| Output Voltage Options | Single | Single | Single | Single | ||||||||||||
| Output Voltage | 12V | 24V | 36V | 48V | ||||||||||||
| Dimensions | 150x53x35 | 150x53x35 | 150x53x35 | 150x53x35 | ||||||||||||
| Working Temperature | -40-+85°C | |||||||||||||||
| Satety Standards | UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS 15885(Part2/Sec13)(for 12,24,48 Blank and 12,24-DA2 Type), EAC TP TC 004, GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL) (AC Input: 100-240Vac)(for DA2-Type only) | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020 | |||||||||||||||
