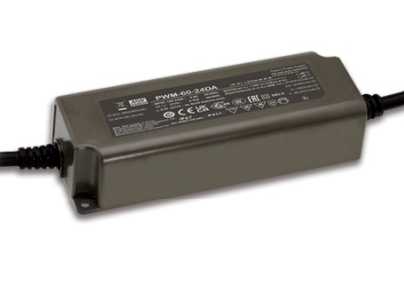

PWM-60IoT Series
60W Wireless Lighting Constant Voltage LED Driver Solution
PWM-60IoT Series Main Features:
Constant voltage PWM style output with frequency up to 4KHz compliant IEEE1789-2015 no risk
Models:
Manufacturer:
Type:
Other features:
PWM-60-12BLE / PWM-60-24BLE
PWM-60-48BLE
MEAN WELL
Indoor Constant Voltage LED Driver
Bluetooth Mesh Dimming Function
Plastic housing with class II design
Built-in active PFC function
Class 2 power unit
Fully encapsulated with IP67 level
Typical lifetime>50000 hours and 5 years warranty
Quote Request
| PWM-60-12BLE | PWM-60-24BLE | PWM-60-48BLE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | |||||||||||||
| Input Voltage | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | 90~305VAC 127~431VDC | |||||||||||||
| Output Current | 5A | 2.5A | 1.25A | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Dimensions | 150x53x35 | 150x53x35 | 150x53x35 | |||||||||||||
| Working Temperature | -25-+65°C | |||||||||||||||
| Satety Standards | Ul8750( type ”HL” ), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,BS EN/EN62384, BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, Ip67(except for BLE type), GB19510.1,GB19510.14 approved; Design refer to BS EN/EN60335-1 | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1,EAC TP TC 020 | |||||||||||||||
