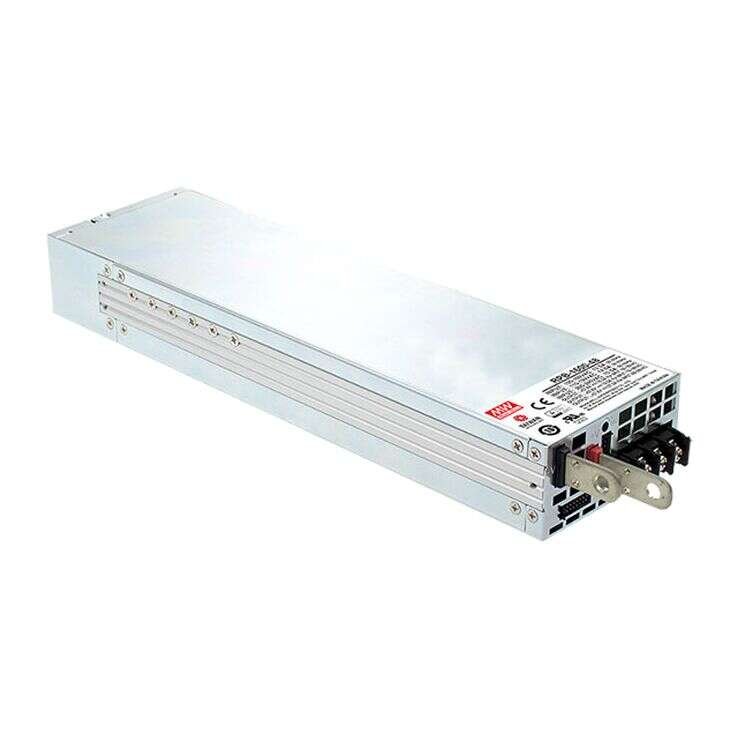

RPB-1600 Series
Chargers 1440–1584W
RPB-1600 Series Main Features:
Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Models:
Manufacturer:
Type:
Other features:
RPB-1600-12 / RPB-1600-24
RPB-1600-48
MEAN WELL
Chargers
Protections: Battery under voltage / Bat
-tery no connection / Short circuit / Over vol
-tage / Over temperature
Built-in I2C interface, PMBus protocol
Universal AC input / Full range (with
-stand 300VAC surge input for 5 seconds)
Forced air cooling by built-in DC fan
Output voltage and current programmable
Built-in OR-ing FET
Active current sharing up to 4800W (2+1)
3 years warranty
Quote Request
| RPB-1600-12 | RPB-1600-24 | RPB-1600-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1440 | 1584 | 1584 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 0~100A | 0~55A | 0~27.5A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 11.5-15V | 23.5-30V | 47.5-58.8V | |||||||||||||
| Dimensions | 300x85x41 | 300x85x41 | 300x85x41 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Conduction Class B, Radiation Class A ; EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN500082-2), light industry level, criteria A | |||||||||||||||
