Home / AC-DC Programmable Power Type / RSP-1600

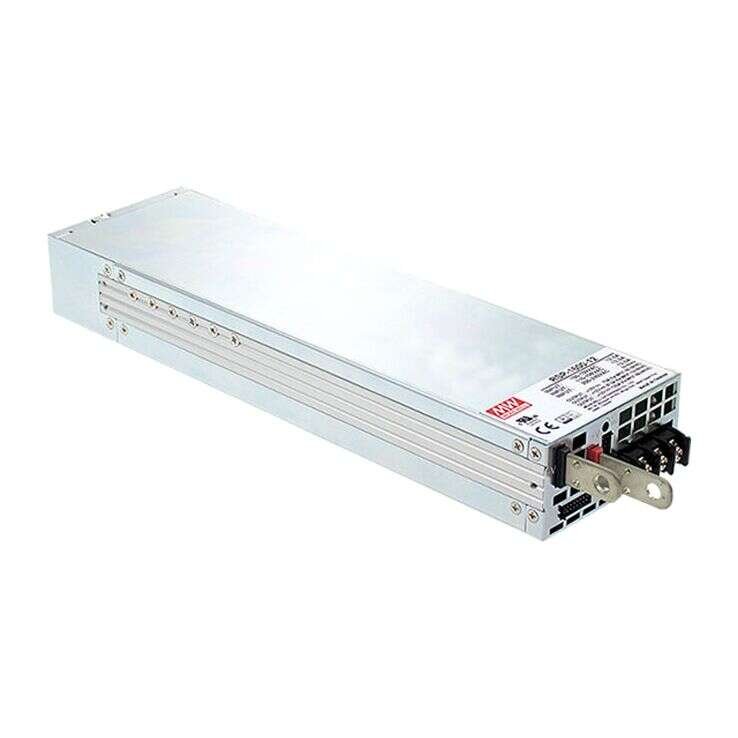

RSP-1600 Series
Enclosed Power Supplies 1500–1608W
RSP-1600 Series Main Features:
Active current sharing up to 9600W (5+1)
Protections: Short circuit/ Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RSP-1600-12 / RSP-1600-24
RSP-1600-27 / RSP-1600-36
RSP-1600-48
MEAN WELL
Programmable Power Supplies
Built-in active PFC function
Universal AC Input / Full range
High efficiency up to 93%
Forced air cooling by built-in DC fan
Output voltage and constant current
level programmable
Suitable for BF application with appro
-priate system consideration
Optional PMBus protocol
3 years warranty
Quote Request
| RSP-1600-12 | RSP-1600-24 | RSP-1600-27 | RSP-1600-36 | RSP-1600-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1500 | 1608 | 1593 | 1602 | 1608 | |||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||
| Output Current | 0~125A | 0~67A | 0~59A | 0~44.5A | 0~33.5A | |||||||||||
| Output Voltage | 12V | 24V | 27V | 36V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 11.5-15V | 23.5-30V | 26.5-33.5V | 35.5-45V | 47.5-58.8V | |||||||||||
| Dimensions | 300x85x41 | 300x85x41 | 300x85x41/td> | 300x85x41 | 300x85x41 | |||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | |||||||||||||||
