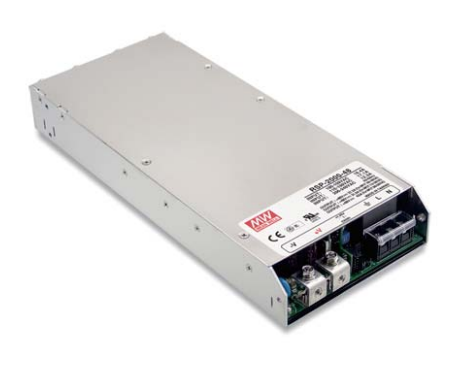

RSP-2000 Series
Enclosed Power Supplies 1200–2016W
RSP-2000 Series Main Features:
Universal AC input/ Full range
Protections: Short circuit/ Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RSP-2000-12 / RSP-2000-24
RSP-2000-48
MEAN WELL
Programmable Power Supplies
Built-in active PFC function
High efficiency up to 92%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 8000W(3+1)
Built-in remote ON/OFF control / re
-mote sense / auxiliary power / DC
OK signal / OTP alarm signal
Optional conformal coating
3 years warranty
Quote Request
| RSP-2000-12 | RSP-2000-24 | RSP-2000-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 1200 | 1920 | 2016 | |||||||||||||
| Input Voltage | 90~264VAC 250~320VDC | 90~264VAC 250~320VDC | 90~264VAC 250~320VDC | |||||||||||||
| Output Current | 0~100A | 0~80A | 0~42A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| DC Output Adjustment | 10.5~14V | 21~28V | 42~56V | |||||||||||||
| Dimensions | 295x127x41 | 295x127x41 | 295x127x41 | |||||||||||||
| Working Temperature | -35~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2 , TUV BS EN/EN62368-1 , No. 62368-1, BSMI CNS14336-1 AS/NZS62368.1 BIS IS13252(Part1): 2010/IEC 60950-1: 2005 (except 48V) EAC TP TC 004 approved | |||||||||||||||
