Home / AC-DC Programmable Power Type / RSP-750

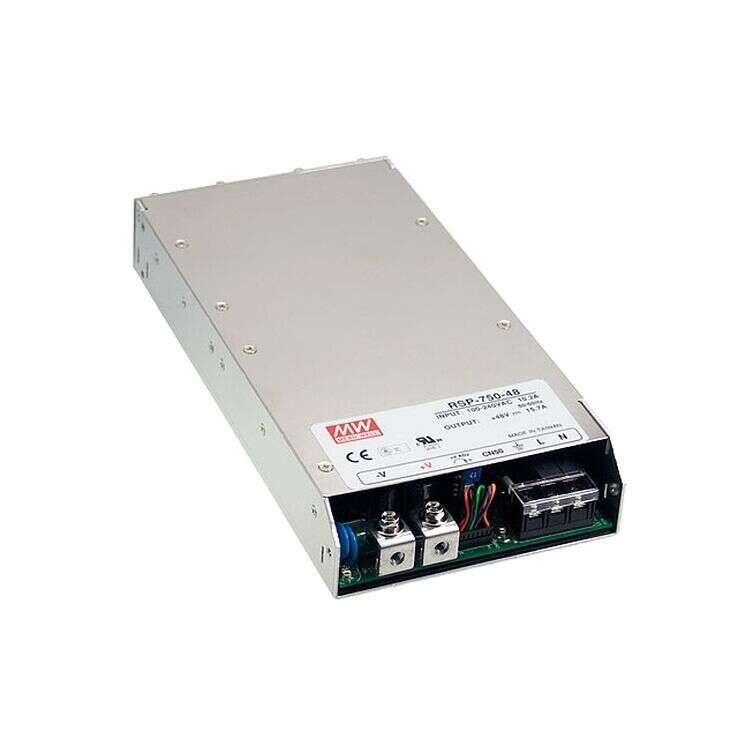

RSP-750 Series
Enclosed Power Supplies 500–750W
RSP-750 Series Main Features:
High efficiency up to 92%
Built-in 12V/0.1A auxiliary power
Built-in active PFC function, PF>0.97
Models:
Manufacturer:
Type:
Other features:
RSP-750-5 / RSP-750-12
RSP-750-15 / RSP-750-24
RSP-750-27 / RSP-750-48
MEAN WELL
Programmable Power Supplies
Protections: Short circuit / Overload /
Over voltage / Over temperature / Fan alarm
High power density 9.44w/inch³
Universal AC input / Full range
AC input active surge current limiting
Output voltage programmable from 40
-110% by 2-5.5 VDC external control signal
Forced air cooling by built-in DC with
fan speed control function
1U low profile 41mm
Built-in remote ON-OFF control
3 years warranty
Quote Request
| RSP-750-5 | RSP-750-12 | RSP-750-15 | RSP-750-24 | RSP-750-27 | RSP-750-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 500 | 750 | 750 | 750 | 750 | 750 | ||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||
| Output Current | 0~100A | 0~62.5A | 0~50A | 0~31.3A | 0~27.8A | 0~15.7A | ||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | 27V | 48V | ||||||||||
| DC Output Adjustment | 4.75~5.5V | 10~13.5V | 13.5~16.5V | 20~26.4V | 24~30V | 43~55V | ||||||||||
| Dimensions | 250x127x41 | 250x127x41 | 250x127x41 | 250x127x41 | 250x127x41 | 250x127x41 | ||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | |||||||||||||||
