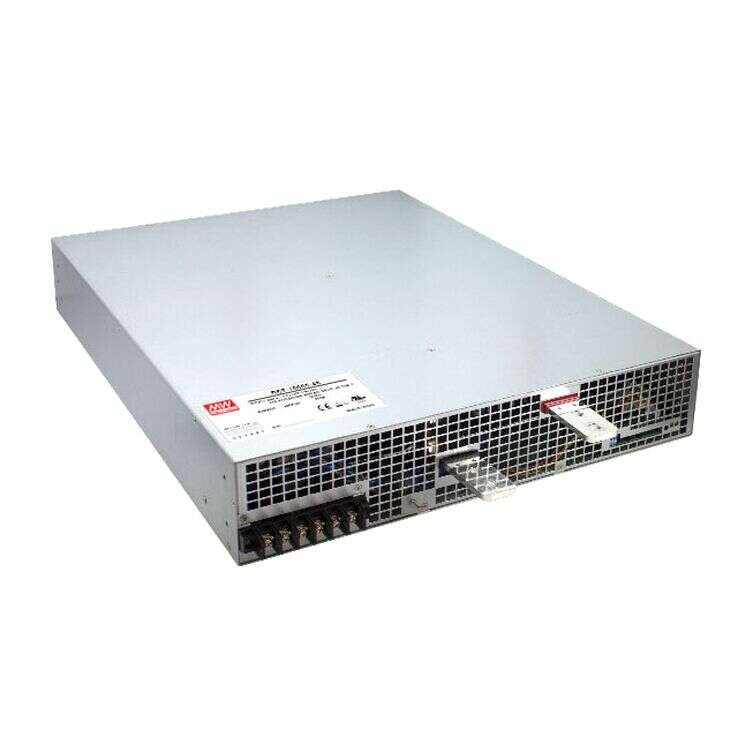

RST-10000 Series
Enclosed Power Supplies 10000W
RST-10000 Series Main Features:
The Mean Well RST-10000 Series is a 10080W Power Supply available in 3 different output voltages, 24V, 36V & 48V
Models:
Manufacturer:
Type:
Other features:
RST-10000-24 / RST-10000-36
RST-10000-48
MEAN WELL
Programmable Power Supplies
This enclosed power supply with 340
- 530VAC input voltage, operates with
wide range three phase AC input and
features various built-in functions includ
-ing active power factor correction, out
-put programming, active current shar
-ing, remote ON-OFF control and high effic
-iency at 91%
Quote Request
| RST-10000-24 | RST-10000-36 | RST-10000-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 10000 | 10000 | 10000 | |||||||||||||
| Output Current | 400A | 276A | 210A | |||||||||||||
| Output Voltage | 24V | 36V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| Dimensions | 540x424x83.5 | 540x424x83.5 | 540x424x83.5 | |||||||||||||
| Working Temperature | -40~+85°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class A, EN61000-3-2,-3, EN61000-4-2-3-4-5-6-8-11, EN55024, EN61000-6-2, heavy industry level, criteria A | |||||||||||||||
