RST-15K Series
Enclosed Power Supplies 14904–15030W
RST-15K Series Main Features:

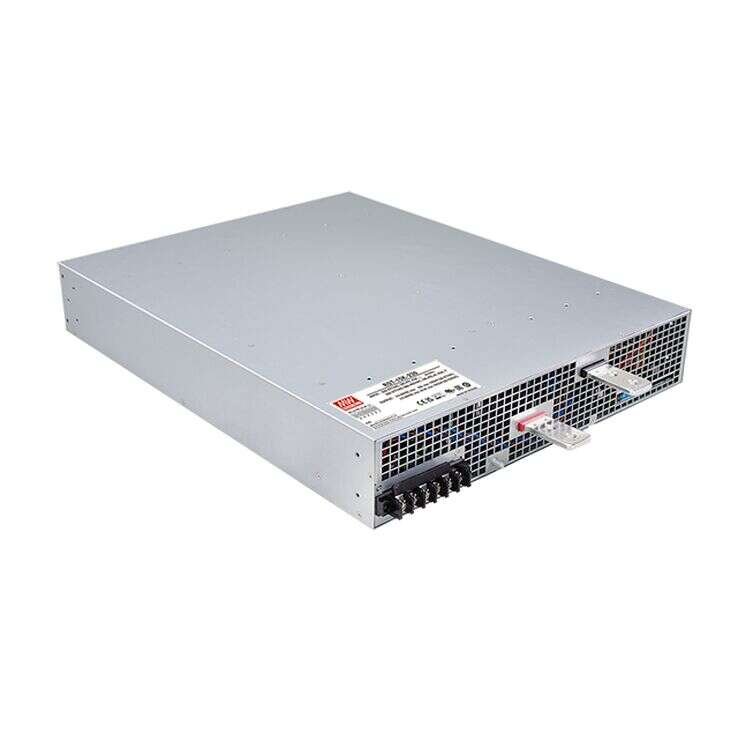

RST-15K is a 15KW single output enclosed type AC/DC power supply
Protections: Short circuit/ Overload/ Over voltage/ Over temperature
Models:
Manufacturer:
Type:
Other features:
RST-15K-115 / RST-15K-230
RST-15K-380
MEAN WELL
Programmable Power Supplies
3Ø4W AC input with 340~530V wide range
High efficiency up to 95%
Water/forced air cooling types selectable
Output voltage and constant current
level programmable
Wide voltage adjustment range 1%~120%
Active current sharing (Parallel) up to 30kW
Built-in T-alarm / DC-OK / Fan fail / AC
fail signals
5 years warranty
Quote Request
| RST-15K-115 | RST-15K-230 | RST-15K-380 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 14950 | 14904 | 15030 | |||||||||||||
| Input Voltage | 196~305VAC | 196~305VAC | 196~305VAC | |||||||||||||
| Output Current | 130A | 69A | 45A | |||||||||||||
| Output Voltage | 115V | 230V | 380V | |||||||||||||
| Dimensions | 540x424x83.5 | 540x424x83.5 | 540x424x83.5 | |||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) BS EN/EN61000-3-12 BS EN/EN61000-3-3 | |||||||||||||||
